LPC Series

Cycle Application

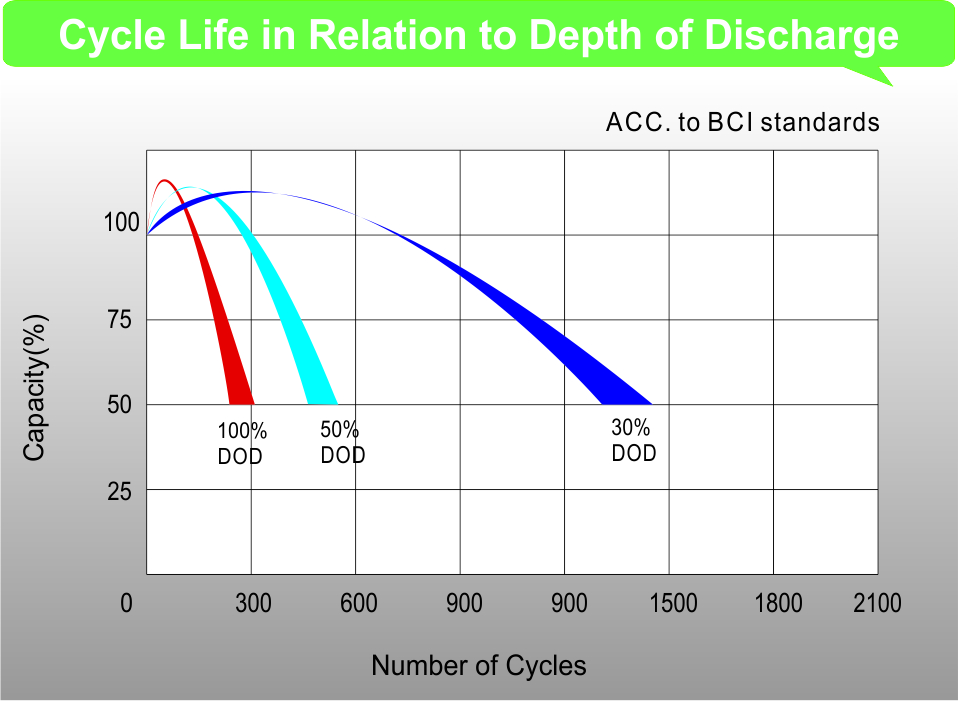

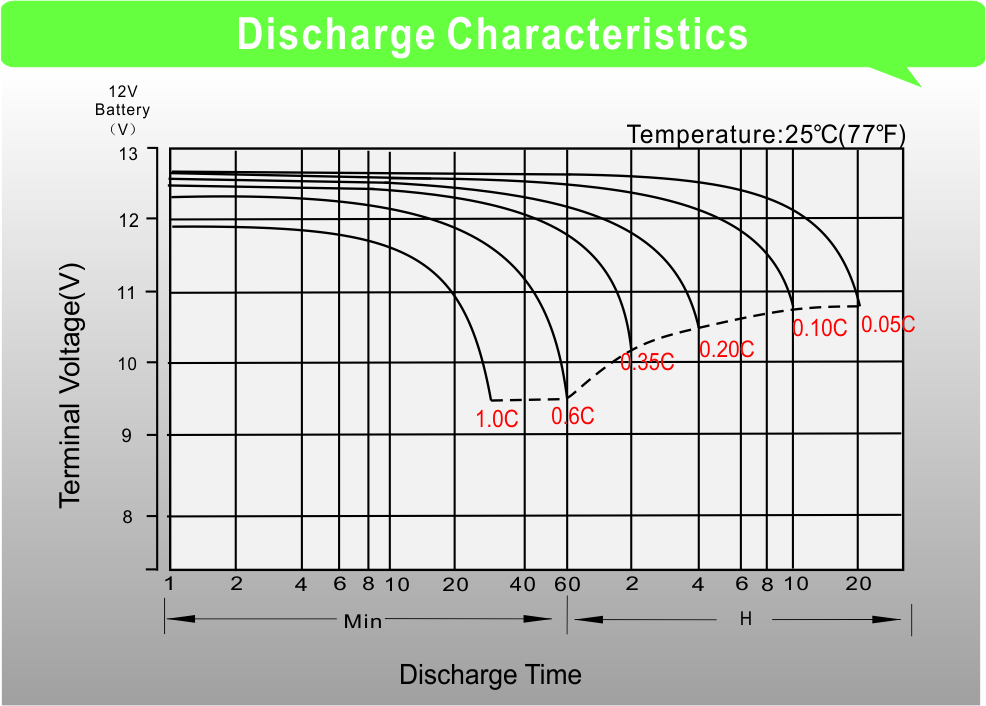

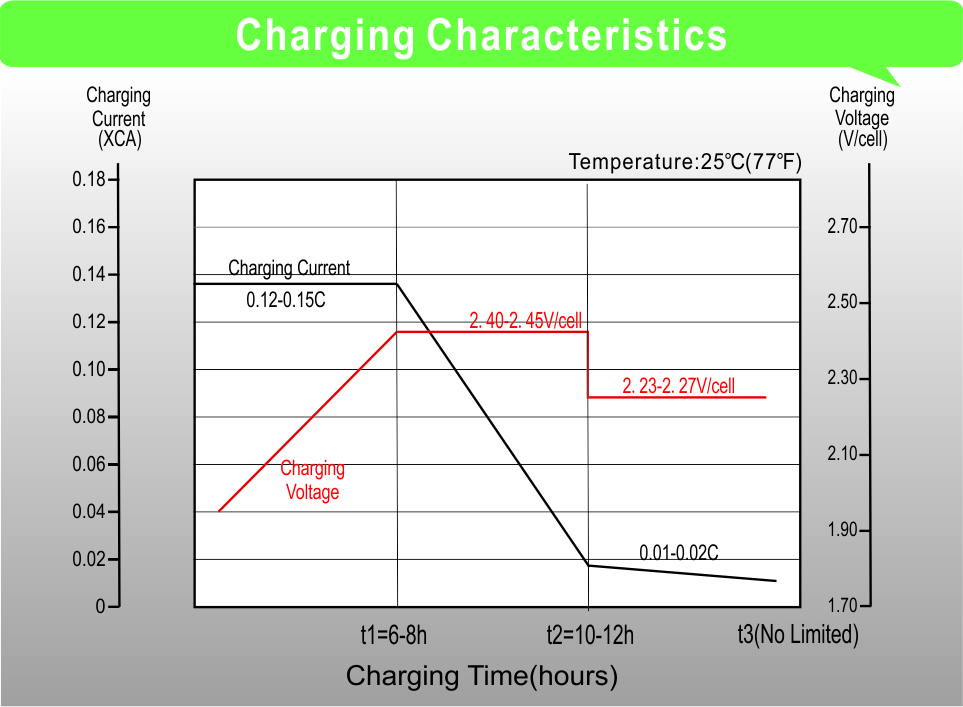

Specification Features Application Curves

Model	Weight (kg)	Rated Voltage(V)	20h 1.75V/cell	10hr 1.80V/cell	L(mm)	W(mm)	H(mm)	TH(mm)	IR(mΩ)	Terminal	Short Current(A)
LPC6-5.6	0.90	6	5.5		70	47	100	106	16	T1/T2	154
LPC6-13	1.90	6	14		151	50.5	94	100	10	T1/T2	392
LPC12-3.5	1.19	12	3.5		134	67	59.5	65.5	40	T1	98
LPC12-5.6	1.80	12	5.4		90	70	101	107	25	T1/T2	151.2
LPC12-8.0	2.50	12	8.0		151	65	93.5	99.5	20	T2	224
LPC12-12	3.43	12	12		151	98	95	101	16	T1/T2	336
LPC12-13	3.78	12	14		151	98	95	101	14	T1/T2	392
LPC12-18	5.65	12	20		181.5	76.5	167.5	167.5	16	T3	560
LPC12-20	6.00	12	20		181.5	76.5	167.5	167.5	14	M5	560
LPC12-24	8.57	12	26		166	175	126	126	12	M5	728
LPC12-24H	9.10	12	28		164	125	176	176	14	T3-A	700
LPC12-26	7.80	12	26		166	175	125	125	14	T3	650
LPC12-33	10.15	12	33		195	130	164	178	12	T5	825

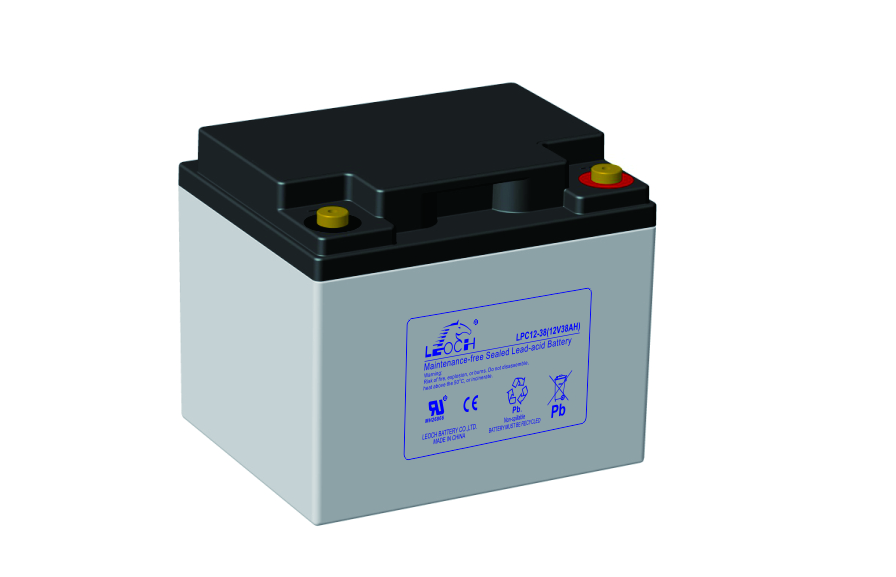

LPC12-38	12.00	12		38	197	165	170	170	10	M6	950
LPC12-42	14.60	12		42	197	165	170	170	9.0	M6	1050
LPC12-50	17.60	12		50	257	132	200	200	9.0	M6	1250
LPC12-55	16.20	12		55	229	138	205	211	9.0	M6	1375

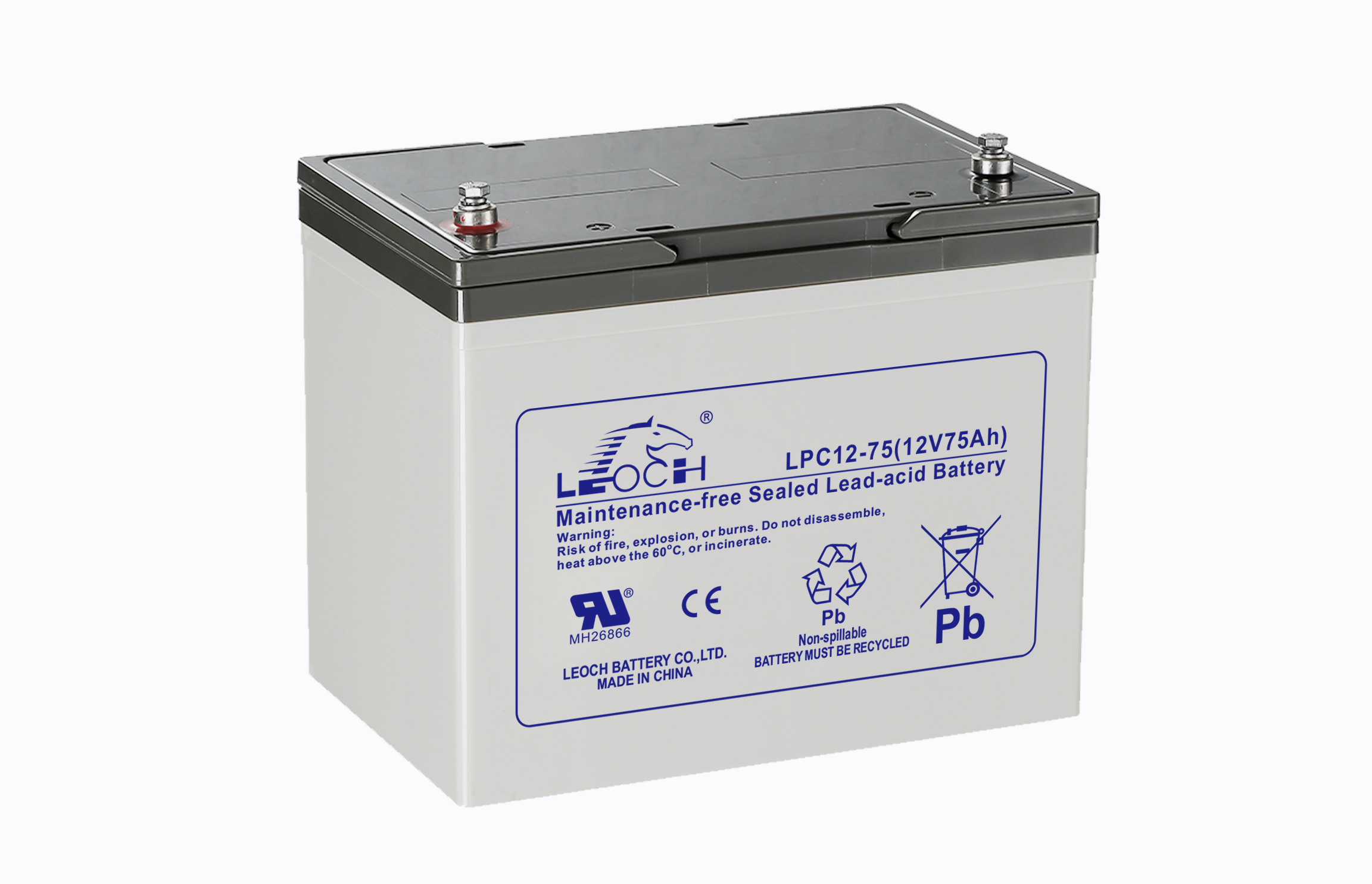

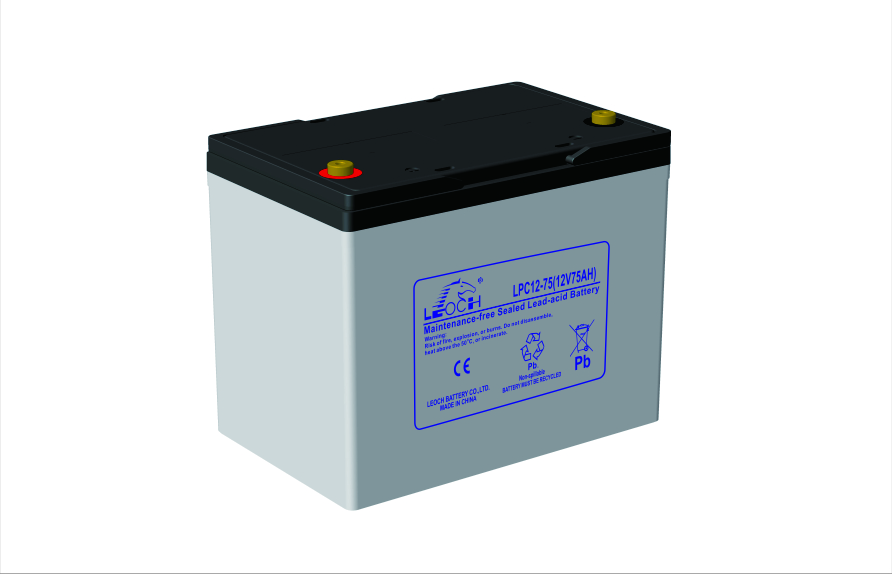

LPC12-75	22.30	12		75	260	168	208	214	6.6	M6	1875
LPC12-90	26.80	12		90	306	168	208	214	5.5	M6	2070
LPC12-100	30.60	12		100	330	173	212	220	4.9	M8	2000
LPC12-120	37.30	12		120	408	177	225	225	3.6	M8	2400

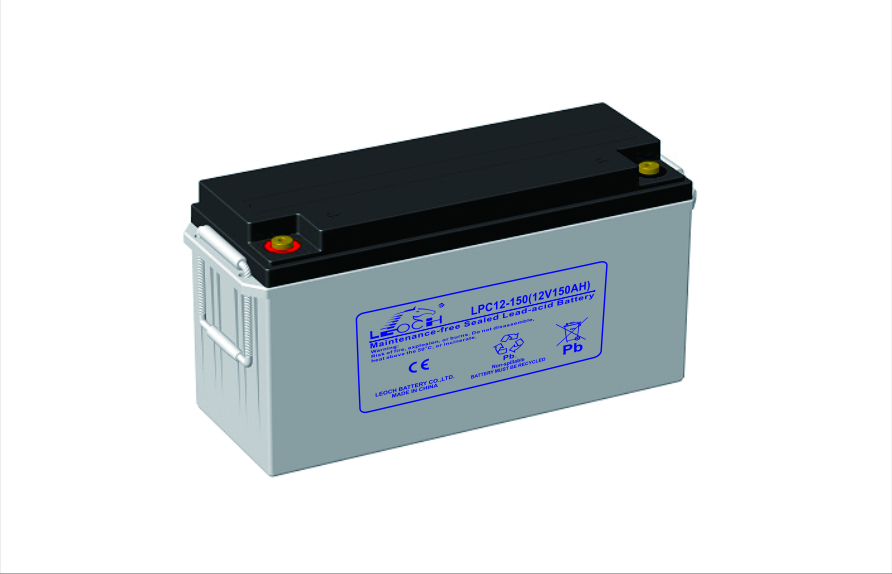

LPC12-150	43.20	12		150	483	170	238.5	238.5	3.5	M8	3000

Parameter information subject to the contract, here for your reference only.

1. Good cyclic property. Enhanced overcharge endurance and overdischarge recovery property

2. Using oxygen recombination technology: maintenance-free

3. Lower acid density, excess of electrolyte and larger distance between plates to keep battery at low temperature and slow down plate grid corrosion speed

4. Unique plate group configuration, high quality AGM separator and battery management system ensure battery with a longer service life
