LPCG Series
Cycle Application
Contact US
| Model | Rated Voltage | 20Hr | 10Hr | Length | Width | Height | TH | Weight | Terminal |
| V | 1.8V/cell | 1.75V/cell | mm | mm | mm | mm | kg | ||
| LPCG12-24 | 12 | 24 | 22.6 | 166 | 175 | 125 | 125 | 8.5 | T12(M5) |
| LPCG12-30 | 12 | 30 | 27.6 | 195 | 130 | 164 | 178 | 10.2 | T5 |
| LPCG12-40 | 12 | 38 | 35 | 197 | 165 | 170 | 170 | 12.8 | T6(M6) |
| LPCG12-55 | 12 | 55 | 50 | 229 | 138 | 205 | 211 | 16.1 | T6(M6) |
| LPCG12-60 | 12 | 60 | 55 | 255 | 170 | 174.5 | 177.5 | 18.5 | T6(M6) |
| LPCG12-65 | 12 | 65 | 60 | 325 | 167 | 174 | 174 | 20.5 | T6(M6) |
| LPCG12-70 | 12 | 75 | 70 | 260 | 168 | 208 | 214 | 22.9 | T6(M6) |
| LPCG12-90 | 12 | 90 | 85 | 306 | 168 | 208 | 214 | 27.5 | T6(M6) |

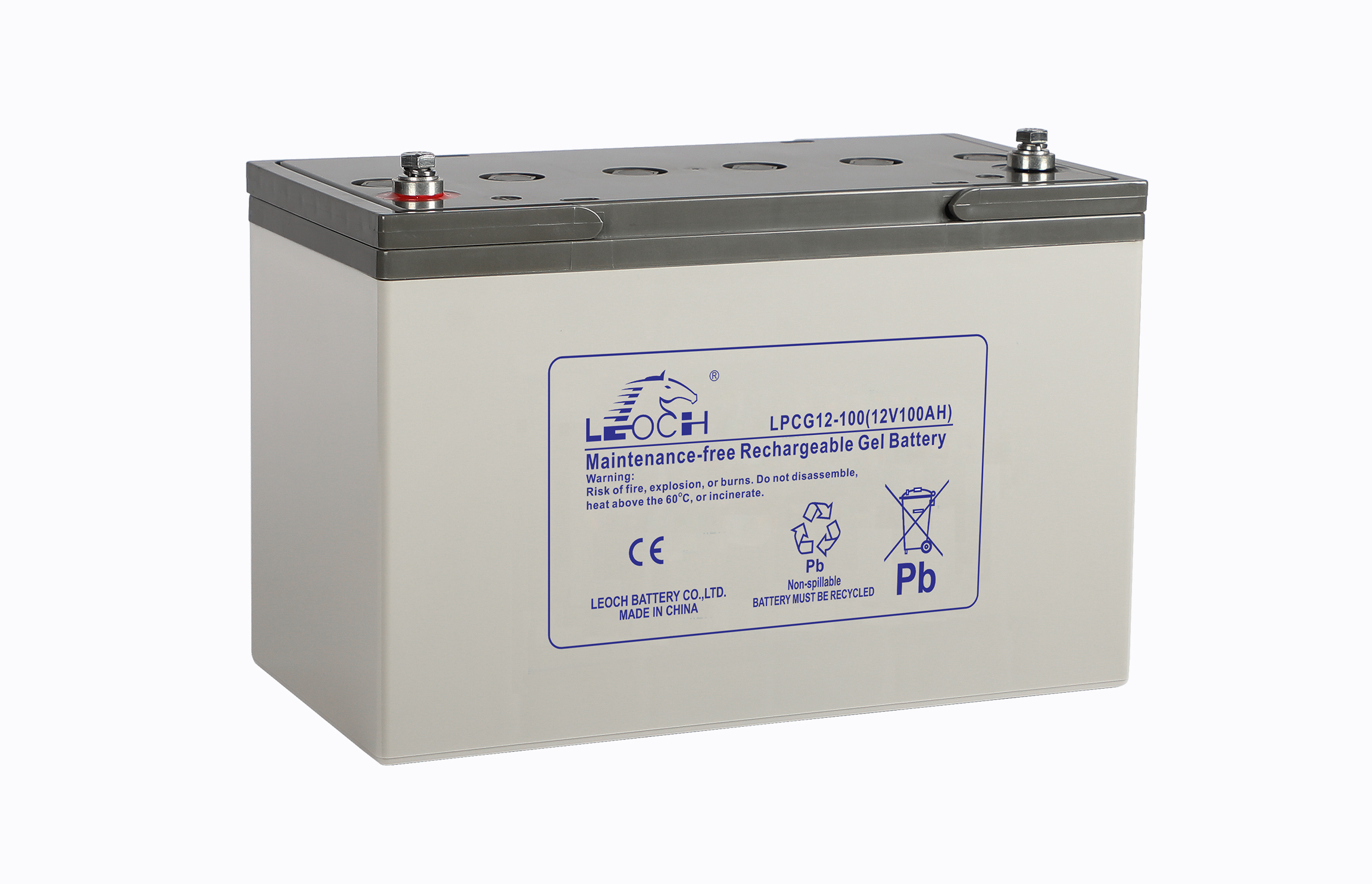

| LPCG12-100 | 12 | 100 | 90 | 330 | 173 | 212 | 218 | 31.2 | T11(M8) |
Parameter information subject to the contract, here for your reference only.
1. Good deep discharge resilience performance
2. Special plate design guarantees battery floating life more than 4000 times
3. High thermal capacity reduce the risk of thermal out of control and drying hard, and the battery can be used in bad environment
4. Little water losing, and no electrolyte stratification phenemenon
1. Railway and marine systems
2. Electric tools, Lawn mowers
3. Vehicle in place of walking
4. Golf trolleys and golf cart
5. Wheelchair, Portable power,
6. Medical equipments
