LDC Series

LEOCH Deep Cycle AGM-GEL Battery

Specification Features Application Curves

Model	Rated Voltage	Rated Capacity(AH)				Dimension(mm)				Weight
Model	V	20hr	10hr	5hr	3hr	L	W	H	TH	kg
LDC12-13	12	13	12	11	10	152	99	97	99	3.65
LDC12-15	12	15	14.4	13.5	13	151.5	99.5	97	100	4.0
LDC12-25	12	25	24	22.6	21.7	181.5	77	170	170	6.4
LDC12-26	12	26	25	24	23	181	76.5	171	171	6.85
LDC12-39	12	39	37	35	33	195	130	164	167	11.3
LDC12-43	12	43	37	34	32	267.5	77.5	171	171	10.1
LDC12-44	12	44	40	36	34	197	166	170	170	13.4
LDC12-53	12	53	46	44	40	197	166	170	170	14.2
LDC12-55	12	55	50	48	45	223	123	175	175	13.4
LDC12-68	12	68	60	57	53	229	138	210	216.5	17.5
LDC12-76	12	76	70	65	60	260	168	173	176	20.0

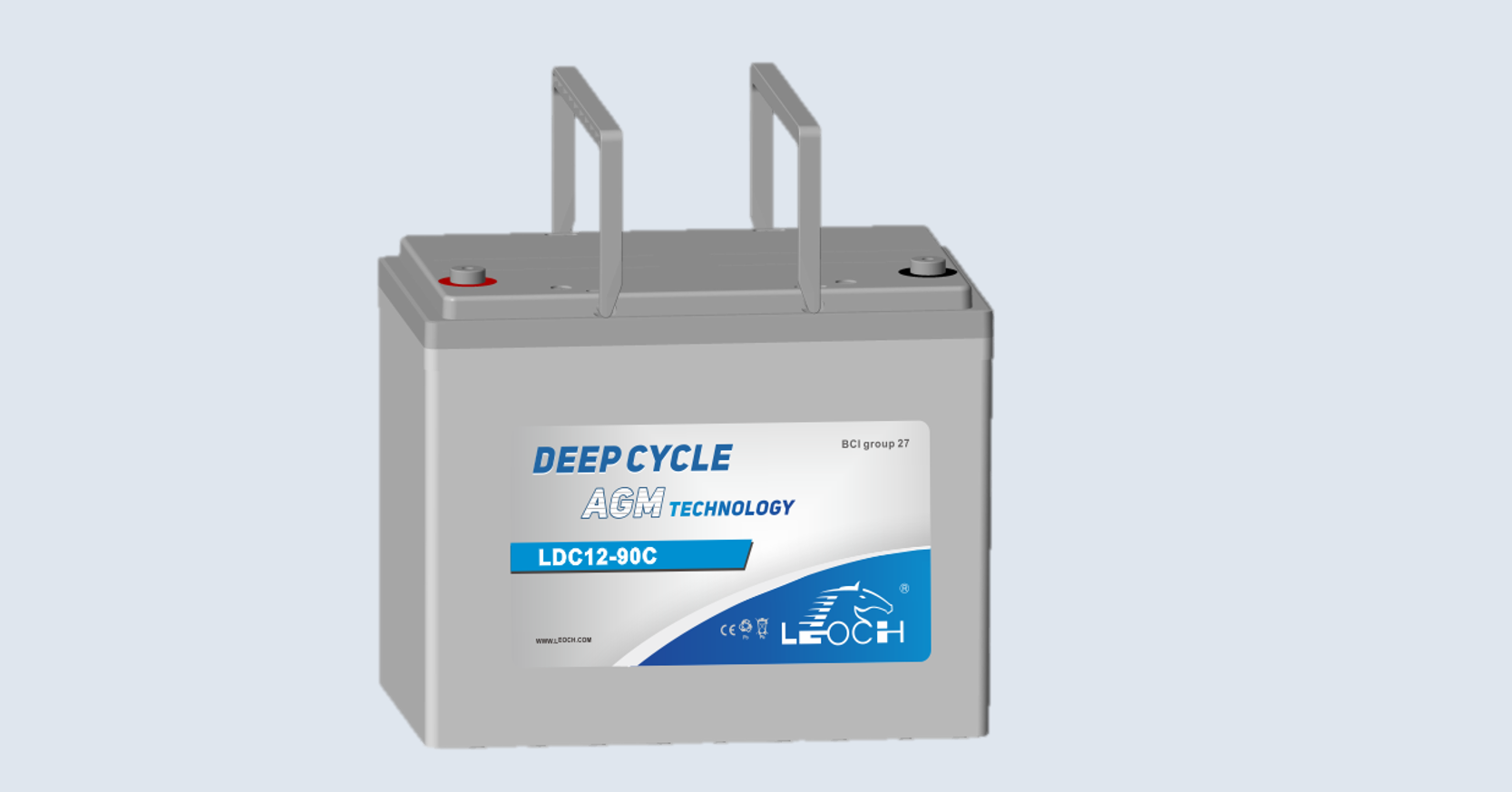

LDC12-90C	12	90	85	77	72	260	168	208	214	23.3
LDC12-90-G24-T	12	90	85	77	72	260	168	208	214	23.5
LDC12-90-G24-DT	12	90	85	77	72	260	168	208	232.5	23.8
LDC12-100	12	100	92	89	80	260	168	211	214	25.8
LDC12-105-G27-T	12	108	104	96	90	306	168	208	214	27.3
LDC12-105-G27-DT	12	108	104	96	90	306	168	208	232.5	27.8
LDC12-115-G31-DT	12	118	113	107	98	330	173	212	237	31.7
LDC12-115-G31-T	12	118	113	107	98	330	173	212	220	31.4
LDC12-120	12	120	114	106	100	330	173	213	220	32.8
LDC12-135	12	135	126	115	105	327	180	274	274	37.7
LDC12-140	12	144	138	126	120	408	176	224.5	224.5	39.2
LDC12-145	12	148	141	122	118	340	172	280	286	42.5
LDC12-150-GC12	12	150	143	136	125	327	180	274	274	42.2

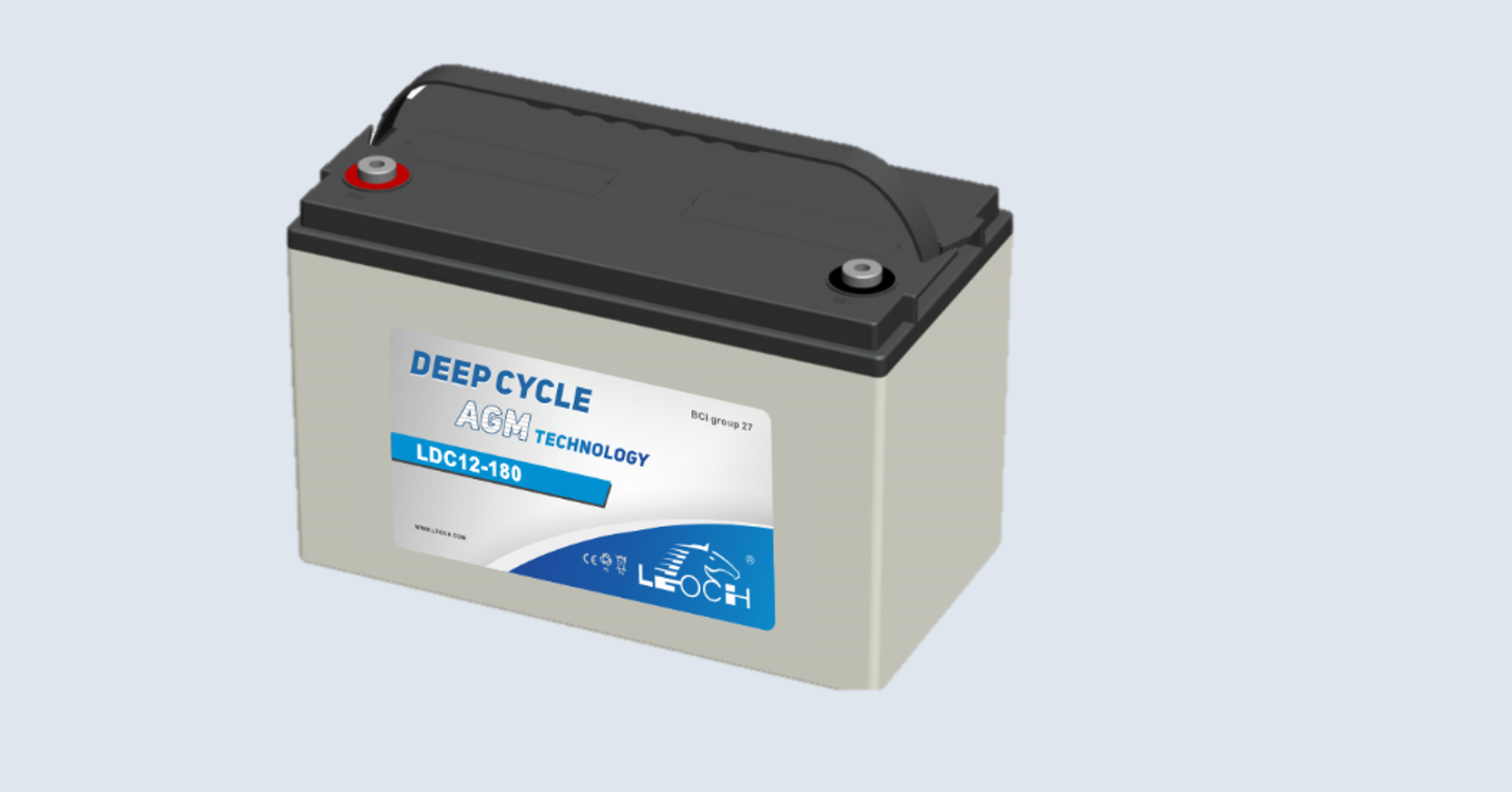

LDC12-180	12	180	174	162	150	483	170	238.5	238.5	50.1
LDC12-220	12	220	210	190	170	387	180	346	368	59.7
LDC12-245	12	245	233	210	185	387	180	346	368	64.3
LDC6-210-GC2	6	210	200	175	165	260	180	252	274	27.2
LDC6-210B	6	210	200	175	165	260	180	252	274	30.4
LDC6-210C	6	210	200	175	165	260	180	252	274	30.4
LDC6-400C	6	400	375	342	310	295	180	406	428	54.2
LDC6-400D	6	400	375	342	310	295	180	406	429	54.2
LDC6-224-GC2	6	224	210	192	173	260	180	247	253	30.5
LDC6-265-GC2	6	268	240	220	200	260	180	263	268	32.9
LDC6-245	6	245	232	210	196	243	187.5	275	275	32.4

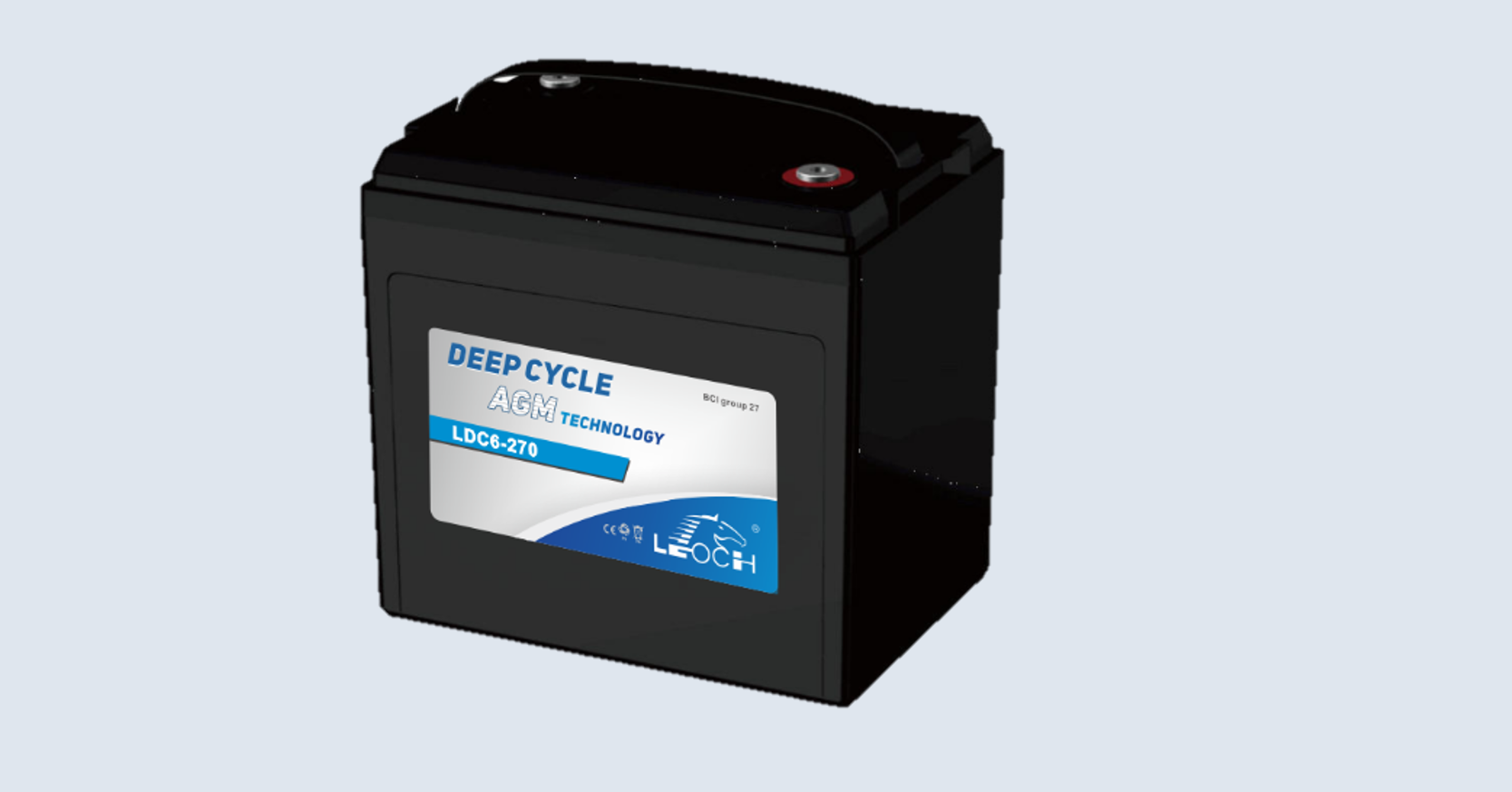

LDC6-270	6	270	255	235	219	260	180	263	268	34.7
LDC6-275	6	275	260	240	225	295	180	274	296	36.5
LDC6-315	6	315	275	250	235	295	180	346	368	44.0
LDC6-350	6	350	332	305	285	295	180	346	368	48.2
LDC6-370	6	370	325	290	265	295	180	406	428	52.4
LDC6-400-L16	6	400	375	342	310	295	180	406	428	54.2

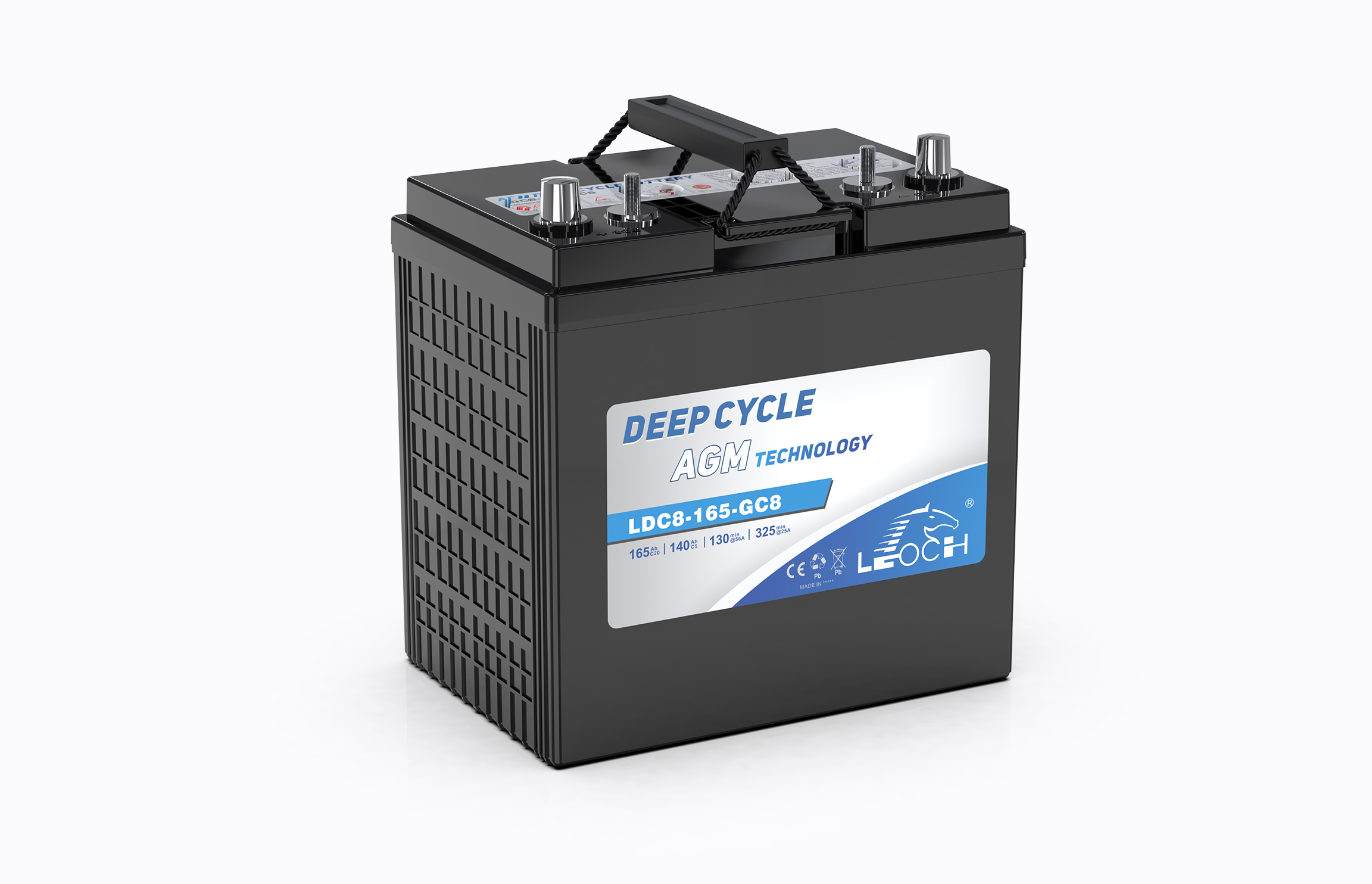

LDC8-165-GC8	8	165	155	140	125	260	180	252	274	29.3
LDC8-195	8	195	178	163	150	262	180	278.5	278.5	34.5
LDC8-180-GC8	8	182	170	153	135	260	180	252	274	30.8
LDC8-210-GC8H	8	210	190	180	165	260	182	295	298	40.5

Parameter information subject to the contract, here for your reference only.

1. Deep Cycle Design for High Capacity and Maximum Life

-Paste customized for deep cycle performance; paste formula, process and ratio of positive to negative active materials.

-Unique production process used to maximize cycle life.

-Paste formula designed to minimize water consumption providing longer service life.

2. Superior Performance in Wide Variety of Applications

-Special mixture of carbon and other proprietary additives in negative active material to perform in partial state of charge (PSoC) applications and to increase charge acceptance for optimized charging and fast charging capability.

3. One-of-a-Kind AGM Separator

-Leoch manufactures its own AGM separator, unlike any in the market, to lower internal resistance, keep plates wet, maintain cell compression and prevent acid stratification (one of the leading causes of failure in AGM batteries).

-Double wrapping to prevent the short circuit and acid stratification

1. Remote locations

2. Limited accessibility

3. When time & convenience is valued

4. Where flooded batteries are failing prematurely due to improper care

5. Batteries will operate after pre-sale equipment storage or off-season storage

6. Can withstand rough terrain

7. Cold environments – less likely to freeze

8. No gases released with proper operation

9. Can be used near people and sensitive equipment

10. Regulation compliance:schools, hospitals, airports, etc

11. Space-restricted installations
