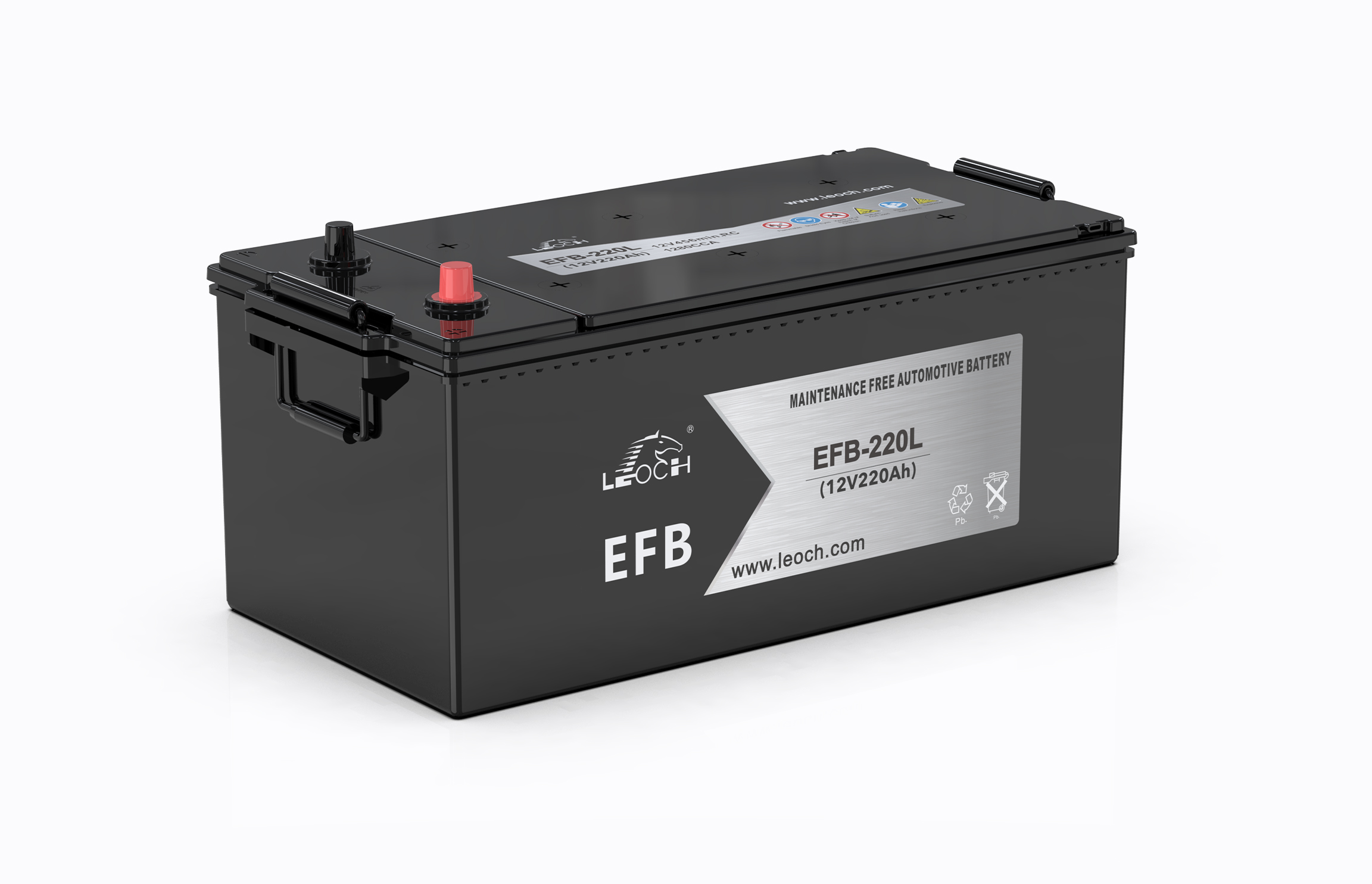

Heavy Duty- EFB Dual Purpose
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US| Model | Rated Voltage (V) | 20hr @1.75V/cell | RC (min) | CCA -18℃ (A) | L(mm) +2/-5 | W(mm) +0/-5 | H(mm) ±3 | TH(mm) ±3 | Gross Weight (kg) | Cell layout | Terminal | Hold-Down | Handle |
| EFB-180L | 12 | 180 | 360 | 1000 | 510 | 222 | 196 | 217 | 47.4 | 4 | 1 | B0 | TS8 |
| EFB-180R | 12 | 180 | 360 | 1000 | 510 | 222 | 196 | 217 | 47.4 | 3 | 1 | B0 | TS8 |
| EFB-220L | 12 | 220 | 456 | 1280 | 521±3 | 261±3 | 217.5 | 240.5 | 59.8 | 4 | 1 | B0 | TS8 |
| EFB-220R | 12 | 220 | 456 | 1280 | 521±3 | 261±3 | 217.5 | 240.5 | 59.8 | 3 | 1 | B0 | TS8 |
Parameter information subject to the contract, here for your reference only.
1. Long life: Leoch marine battery has long life, adopts advanced valve-controlled EFB technology, and takes both deep cycle performance and high starting performance into consideration.
2. Valve control technology: Leoch marine battery uses a special high-sensitivity integrated safety valve to ensure certain internal pressure inside the battery, reduce water loss during using, and increase battery life.
3. Application of EFB separator : Leoch marine battery uses high strength, high porosity, and high resilience EFB separator, the separator porosity is as high as 90% or more, which improves the acid absorption of the separator and improves the battery capacity and starting ability; The resilience ensures the assembly pressure during the battery life, avoids the lead paste falling and improves the battery life
4. Bold parts design: Leoch marine battery adopts thick lead parts design, and the battery has the ability of continuous high current discharge.
5. High starting ability: Leoch marine battery adopts a unique lead paste formula , high CCA performance and stronger starting ability. At the same time, special carbon materials are added to the formula, and the battery has a higher charge acceptance ability
6. Reliable sealing structure: Leoch marine sealed lead-acid battery has a unique sealing structure to ensure the acid will not overflow
7. Low self-discharge rate: The use of high-purity raw materials and strict quality control greatly reduce the self-discharge during storage. The monthly self-discharge rate of the battery is less than 3%
8. Safe explosion-proof system: Leoch marine battery adopts a unique structure to ensure the safety of the battery
9. Super battery elasticity: Due to the unique design and additives, when it is deeply discharged to 0V, it can recover 90% of its capacity when charged with an initial current of less than 0.3C and limited 2.4V/cell for 2 weeks
10. Wide applicable temperature range: Using unique technology, it has excellent discharge performance at low temperature and strong corrosion resistance at high temperature. The temperature range is -20 to 55 ℃
11. Safety: Using EFB separator, maintenance-free design, to ensure that it can be placed in any direction
12. Simple maintenance: Excellent oxygen circulation capacity, no need to replenish water; only need to keep the battery connection line firmly, the surface clean and ventilation , the maintenance is very simple
