Marine&RV- AGM Dual Purpose
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US
Large starting current, can be ignition starting instantly, with good low temperature adaptability, can be used in a broad rangebetween -20 to 55 degrees.
Contact US| Model | Rated Voltage (V) | 20hr@ 1.75V/cell | RC (min) | CCA -18℃ (A) | L(mm) +0/-2 | W(mm) +0/-2 | H(mm) +0/-3 | TH(mm) +0/-3 | Gross Weight (kg) | Cell layout | Terminal | Hold-Down | Handle |
| 24M-550 | 12 | 79 | 150 | 550 | 260 | 168 | 208±2 | 233±2 | 23.0 | 1 | 12 | B0 | TS7 |
| 27M-580 | 12 | 92 | 175 | 580 | 306 | 168 | 208±2 | 233±2 | 27.0 | 1 | 12 | B0 | TS7 |
| 27M-800 | 12 | 92 | 200 | 800 | 306 | 168 | 208±2 | 231.5±2 | 28.5 | 1 | 12 | B0 | TS7 |
| 31M-720 | 12 | 105 | 200 | 720 | 330 | 173 | 212±2 | 235.5±2 | 29.8 | 1 | 12 | B0 | TS7 |

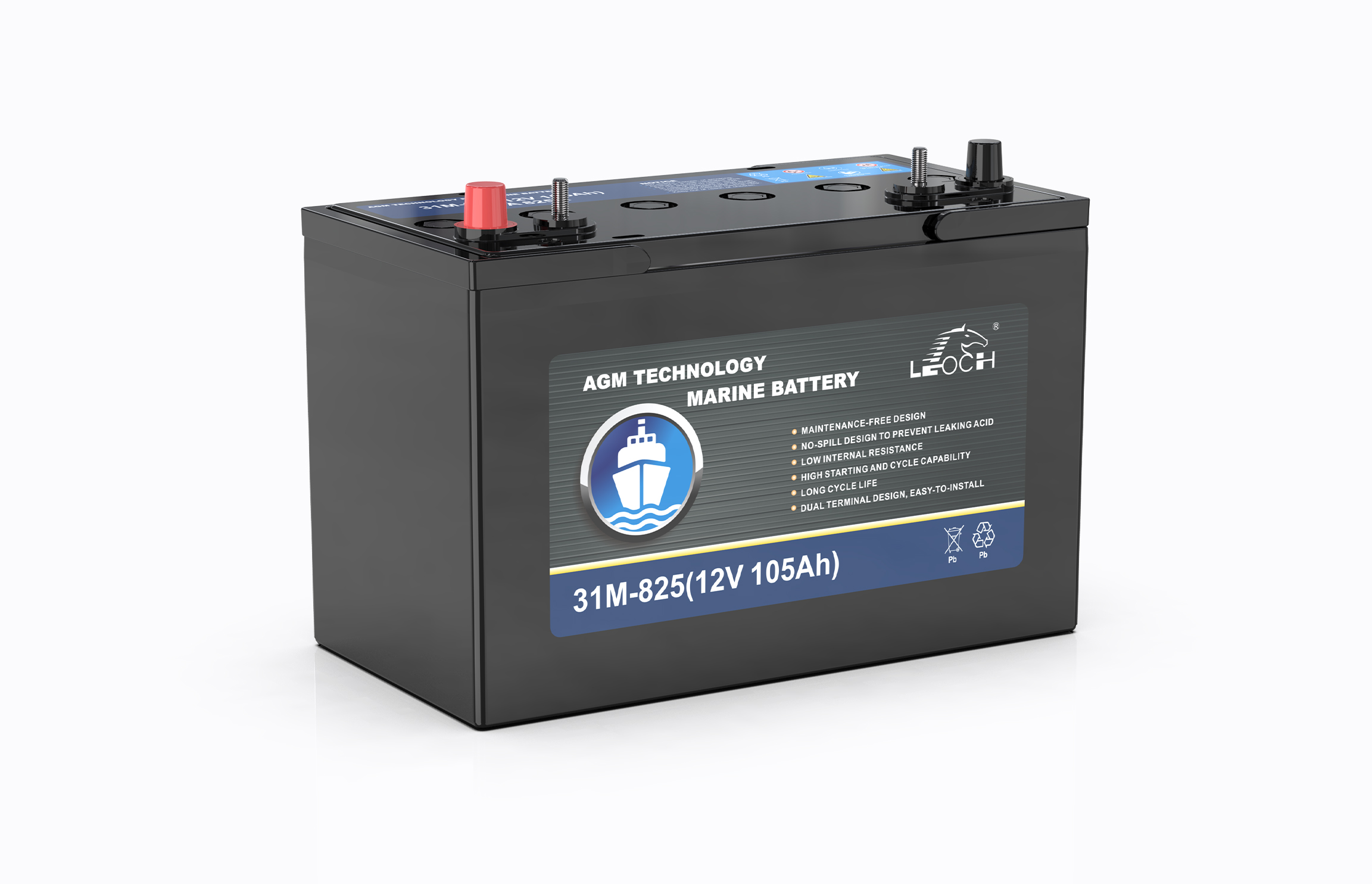

| 31M-825 | 12 | 105 | 200 | 825 | 330 | 173 | 212±2 | 235.5±2 | 30.6 | 1 | 12 | B0 | TS7 |
| LPM12-140M | 12 | 140 | 247 | 700 | 512±3 | 188±3 | 196±3 | 218±3 | 41.2 | 3 | 1 | B0 | TS8 |
| LPM12-180M | 12 | 180 | 380 | 900 | 512±3 | 222±3 | 196±3 | 216±3 | 50.5 | 3 | 5 | B0 | TS8 |
| LPM12-200M | 12 | 200 | 445 | 950 | 527±3 | 214±3 | 222±3 | 244±3 | 55.1 | 4 | 12 | B0 | TS8 |
| LPM12-210M | 12 | 210 | 450 | 1200 | 517±3 | 272±3 | 218±3 | 238±3 | 62.0 | 3 | 5 | B0 | TS8 |
| LPM12-245M | 12 | 245 | 540 | 980 | 527±3 | 280±3 | 230±3 | 252±3 | 67.5 | 4 | 12 | B0 | TS8 |
| LPM12-285M | 12 | 285 | 640 | 1050 | 527±3 | 280±3 | 230±3 | 252±3 | 77.9 | 4 | 12 | B0 | TS8 |
| LPM12-330M | 12 | 330 | 745 | 1200 | 527±3 | 280±3 | 230±3 | 252±3 | 86.5 | 4 | 12 | B0 | TS8 |
Parameter information subject to the contract, here for your reference only.
1. Long life: Leoch marine battery has long life, adopts advanced valve-controlled AGM technology, and takes both deep cycle performance and high starting performance into consideration.
2. Valve control technology: Leoch marine battery uses a special high-sensitivity integrated safety valve to ensure certain internal pressure inside the battery, reduce water loss during using, and increase battery life.
3. Application of AGM separator : Leoch marine battery uses high strength, high porosity, and high resilience AGM separator, the separator porosity is as high as 90% or more, which improves the acid absorption of the separator and improves the battery capacity and starting ability; The resilience ensures the assembly pressure during the battery life, avoids the lead paste falling and improves the battery life
4. Bold parts design: Leoch marine battery adopts thick lead parts design, and the battery has the ability of continuous high current discharge.
5. High starting ability: Leoch marine battery adopts a unique lead paste formula , high CCA performance and stronger starting ability. At the same time, special carbon materials are added to the formula, and the battery has a higher charge acceptance ability
6. Reliable sealing structure: Leoch marine sealed lead-acid battery has a unique sealing structure to ensure the acid will not overflow
7. Low self-discharge rate: The use of high-purity raw materials and strict quality control greatly reduce the self-discharge during storage. The monthly self-discharge rate of the battery is less than 3%
8. Safe explosion-proof system: Leoch marine battery adopts a unique structure to ensure the safety of the battery
9. Super battery elasticity: Due to the unique design and additives, when it is deeply discharged to 0V, it can recover 90% of its capacity when charged with an initial current of less than 0.3C and limited 2.4V/cell for 2 weeks
10. Wide applicable temperature range: Using unique technology, it has excellent discharge performance at low temperature and strong corrosion resistance at high temperature. The temperature range is -20 to 55 ℃
11. Safety: Using AGM separator, maintenance-free design, to ensure that it can be placed in any direction
12. Simple maintenance: Excellent oxygen circulation capacity, no need to replenish water; only need to keep the battery connection line firmly, the surface clean and ventilation , the maintenance is very simple
