OPzS Series

OPzV Series OPzS Series

OPzS Series

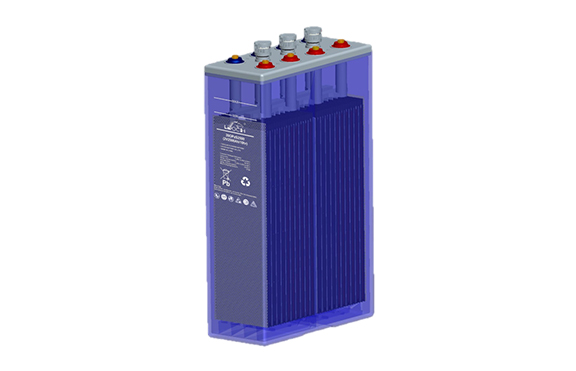

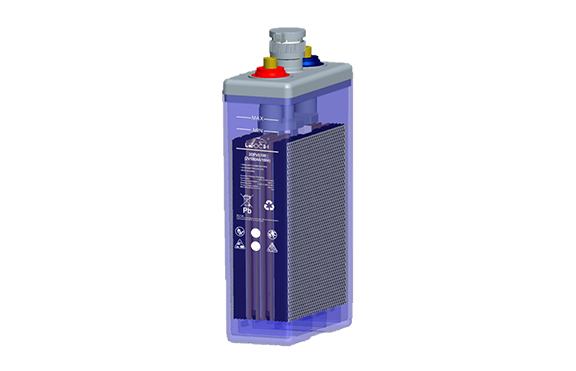

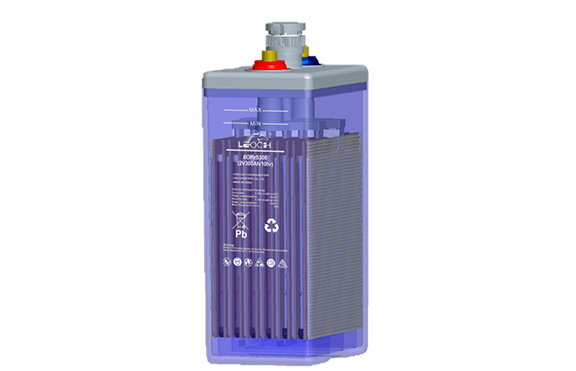

Leoch Flooded-OPzS battery

Contact US

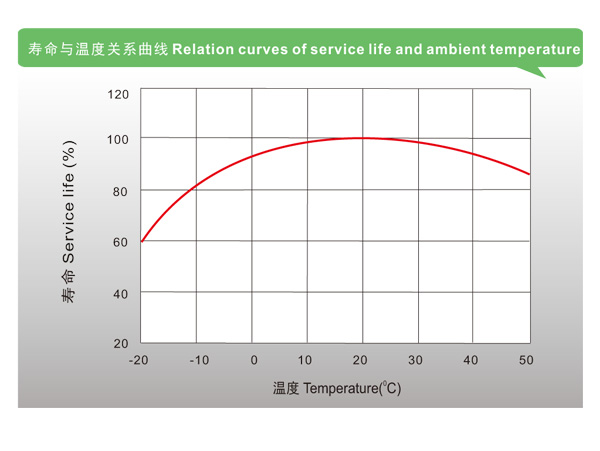

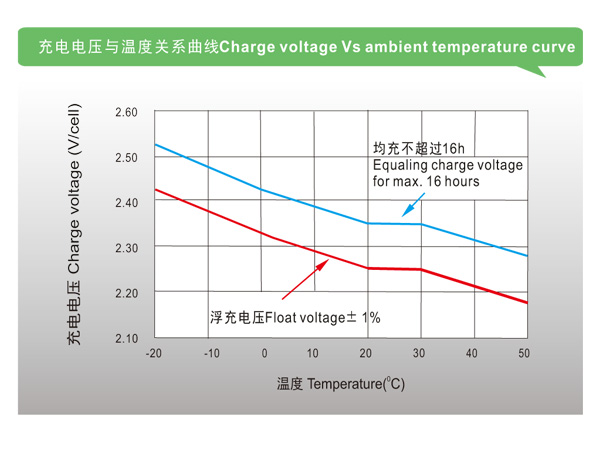

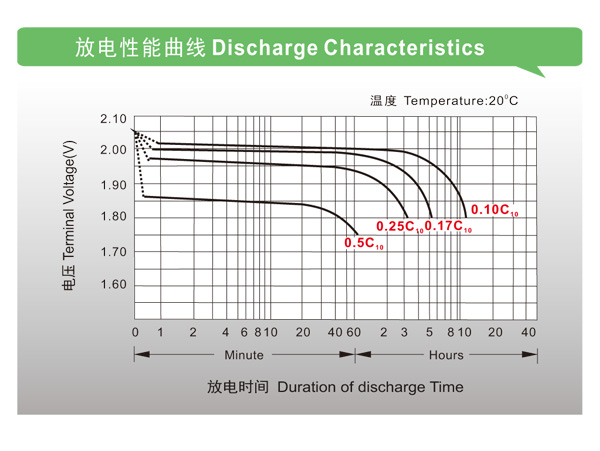

Specification Features Application Curves

Model	Rated Voltage (V)	10hr @1.80V/cell	L (mm)	W (mm)	H (mm)	T H(mm)	Weight (kg)	Terminal Type
2OPzS100	2	100	103	206	355	410	13.2	M10
3OPzS150	2	150	103	206	355	410	15.3	M10
4OPzS200	2	200	103	206	355	410	17.4	M10
5OPzS250	2	250	124	206	355	410	20.4	M10
6OPzS300	2	300	145	206	355	410	23.8	M10
5OPzS350	2	350	124	206	471	526	28.3	M10
6OPzS420	2	420	145	206	471	526	32.7	M10
7OPzS490	2	490	166	206	471	526	38.0	M10
6OPzS600	2	600	145	206	646	701	45.4	M10
10OPzS1000	2	1000	233	210	646	701	77.4	M10
12OPzS1200	2	1200	275	210	646	701	91.7	M10
12OPzS1500	2	1500	275	210	796	851	113.8	M10
24OPzS3000	2	3000	576	212	772	827	224.8	M10

Parameter information subject to the contract, here for your reference only.

1. Lower self discharge.

2. Higher thermal capacity, No thermal runaway will occur.

3. Superior deep cycle performance.

4. Wide operation temperature range.

5. Long service life, designed life 15-20 years.

1. Telecommunications.
2. Radio and cellular telephone relay stations.
3. Emergency lighting systems.
4. Power stations, Conventional power stations.
5. alternative power (solar, wind).
6. Large UPS and computer back-up.
7. Railway signalling.
8. Maritime standby power on ships and ashore.
9. Standby power.
10. Buoy lighting.
