OPzV Series
LEOCH OPzV series for Solar Energy Storage
Contact US
| Model | Rated Voltage | Rated
Capacity | Approx. Dimensions | Terminal | ||||||||||
| 100Hr@ 1.80V/cell | 10Hr@ 1.80V/cell | Length | Width | Height | TH | Weight | ||||||||
| (V) | (AH) | (AH) | mm | in. | mm | in. | mm | in. | mm | in. | kg | lbs | ||
| 4OPzV200 | 2 | 260 | 200 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 390 | 15.35 | 18.8 | 41.5 | M8 |
| 5OPzV250 | 2 | 325 | 250 | 124 | 4.88 | 206 | 8.11 | 355 | 13.98 | 390 | 15.35 | 22.4 | 49.4 | M8 |

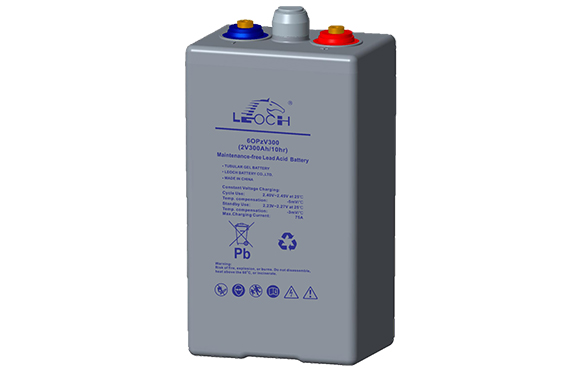

| 6OPzV300 | 2 | 390 | 300 | 145 | 5.71 | 206 | 8.11 | 355 | 13.98 | 390 | 15.35 | 26.4 | 58.2 | M8 |
| 5OPzV350 | 2 | 455 | 350 | 124 | 4.88 | 206 | 8.11 | 471 | 18.54 | 506 | 19.92 | 29 | 63.9 | M8 |
| 6OPzV420 | 2 | 546 | 420 | 145 | 5.71 | 206 | 8.11 | 471 | 18.54 | 506 | 19.92 | 34.5 | 76.1 | M8 |
| 7OPzV490 | 2 | 637 | 490 | 166 | 6.54 | 206 | 8.11 | 471 | 18.54 | 506 | 19.92 | 39 | 86 | M8 |
| 6OPzV600 | 2 | 780 | 600 | 145 | 5.71 | 206 | 8.11 | 646 | 25.43 | 681 | 26.81 | 48 | 105.8 | M8 |
| 8OPzV800 | 2 | 1040 | 800 | 191 | 7.52 | 210 | 8.27 | 646 | 25.43 | 681 | 26.81 | 65.1 | 143.5 | M8 |
| 10OPzV1000 | 2 | 1300 | 1000 | 233 | 9.17 | 210 | 8.27 | 646 | 25.43 | 681 | 26.81 | 78.5 | 173.1 | M8 |
| 12OPzV1200 | 2 | 1560 | 1200 | 275 | 10.83 | 210 | 8.27 | 646 | 25.43 | 681 | 26.81 | 93 | 205.1 | M8 |
| 12OPzV1500 | 2 | 1950 | 1500 | 275 | 10.83 | 210 | 8.27 | 796 | 31.34 | 831 | 32.72 | 115 | 253.6 | M8 |
| 16OPzV2000 | 2 | 2600 | 2000 | 399 | 15.71 | 214 | 8.27 | 772 | 30.39 | 807 | 31.77 | 155 | 341.8 | M8 |
| 20OPzV2500 | 2 | 3250 | 2500 | 487 | 19.17 | 212 | 8.35 | 772 | 30.39 | 807 | 31.77 | 196 | 432.2 | M8 |
| 24OPzV3000 | 2 | 3900 | 3000 | 576 | 22.68 | 212 | 8.35 | 772 | 30.39 | 807 | 31.77 | 232 | 511.6 | M8 |
Parameter information subject to the contract, here for your reference only.
1. Design life12V series 16 years and 2V series 20 years @20°C in continuous float operation down to approx 80% capacity.
2. Excellent recovery performance

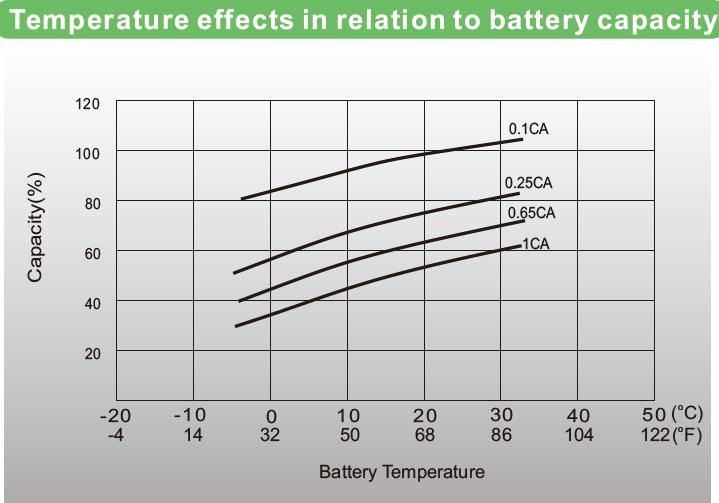

3. Wide working temperature range (-20~55)℃
4. No electrolyte stratification provides longer service life
5. High recombination efficient
6. Build in copper core based in lead will carry large current
7. Separator imported form AMER-SIL high porosity. PVC-SiO2 and low resistance
8. Pasted negative plate special grid design increase the active material.availablity large current discharge and charge ability
9. Tubuler type positive plate (polyester tube) prevent the active material from falling. Muti metal alloy pressed positive grid increase the anti corrosion ablity and service life
Applications
1. Green energy systems (solar, wind, hydro, etc)
2. Telecommunications installations
3. Alarm installations
4. Street lightening
5. Solar power stations
6. Signal station
7. Traffic lights
8. Railway crossing
9. Pump systems
10. Street signs
11. Lawn lamp
