Conventional Flooded
Conventional Flooded type
Contact US
| Model | Voltage | Capacity | CCA | Dimensions | Weight | Terminal | |||||
| (V) | (10Hr) | @ | mm | in | |||||||
| Ah | (-18℃) | L | W | H | L | W | H | Kg | |||
| 6N6-3B | 6 | 6 | N/A | 99 | 57 | 111 | 3 8/9 | 2 1/4 | 4 3/8 | 1.24 | B |
| 6N6-3B-1 | 6 | 6 | N/A | 99 | 57 | 111 | 3 8/9 | 2 1/4 | 4 3/8 | 1.24 | B |
| 6N11A-1B | 6 | 11 | N/A | 122 | 62 | 131 | 4 4/5 | 2 4/9 | 5 1/6 | 2.06 | B |
| 6N11A-3A | 6 | 11 | N/A | 122 | 62 | 131 | 4 4/5 | 2.44 | 5 1/6 | 2.06 | B |
| 12N5S-3B | 12 | 5 | 55 | 120 | 61 | 130 | 4 5/7 | 2 2/5 | 5 1/8 | 1.95 | B |
| 12N5-4B | 12 | 5 | 40 | 120 | 61 | 130 | 4 5/7 | 2 2/5 | 5 1/8 | 2.12 | B |
| 12N5.5-3B | 12 | 5.5 | 44 | 135 | 60 | 130 | 5 3/8 | 2 1/4 | 5 1/8 | 2.22 | B |
| 12N6-3B | 12 | 5.5 | 50 | 137 | 72 | 95 | 5 2/5 | 2 5/6 | 3 3/4 | 2.09 | B |
| 12N6.5-3B | 12 | 6.5 | 55 | 138 | 73 | 107 | 5 3/7 | 2 7/8 | 4 1/5 | 2.36 | B |
| 12N7-3A | 12 | 7 | 74 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.86 | B |
| 12N7-3B | 12 | 7 | 74 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.86 | B |
| 12N7-3B(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.66 | B |
| 12N7-4A | 12 | 7 | 74 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.86 | B |
| 12N7-4A(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.66 | B |
| 12N7-4B | 12 | 7 | 74 | 135 | 75 | 133 | 5 1/3 | 3 | 5 1/4 | 2.86 | B |
| 12N7A-3A | 12 | 7 | 70 | 150 | 60 | 130 | 6 | 2 1/3 | 5 1/8 | 2.63 | B |
| 12N7A-3A(J) | 12 | 7 | 60 | 150 | 60 | 130 | 6 | 2 1/3 | 5 1/8 | 2.49 | B |
| 12N9-3B | 12 | 9 | 85 | 135 | 75 | 139 | 5 1/3 | 3 | 5 1/2 | 2.99 | B |
| 12N9-4B-1 | 12 | 9 | 85 | 135 | 75 | 139 | 5 1/3 | 3 | 5 1/2 | 2.99 | B |
| 12N9-4B-1(J) | 12 | 9 | 70 | 135 | 75 | 139 | 5 1/3 | 3 | 5 1/2 | 2.81 | B |
| 12N10-3B | 12 | 10 | 95 | 134 | 89 | 145 | 5 2/7 | 3 1/2 | 5 5/7 | 3.67 | B |
| 12N12A-4A-1 | 12 | 12 | 113 | 134 | 81 | 160 | 5 2/7 | 3 1/5 | 6 2/7 | 4.18 | B |
| 12N12A-4A-1(J) | 12 | 12 | 95 | 134 | 81 | 160 | 5 2/7 | 3 1/5 | 6 2/7 | 3.90 | B |
| 12N14-3A2 | 12 | 14 | 128 | 134 | 89 | 166 | 5 2/7 | 3 1/2 | 6 1/2 | 4.19 | D |
| 12N14-4A | 12 | 14 | 128 | 134 | 89 | 166 | 5 2/7 | 3 1/2 | 6 1/2 | 4.19 | D |
| 12C16A-3A | 12 | 18 | 210 | 186 | 82 | 171 | 7 1/3 | 3 2/9 | 6 3/4 | 5.93 | G |
| 12C16A-3B | 12 | 18 | 210 | 186 | 82 | 171 | 7 1/3 | 3 2/9 | 6 3/4 | 5.93 | G |
| 12N24-3A(J) | 12 | 24 | 200 | 184 | 124 | 175 | 7 1/4 | 4 7/8 | 6 8/9 | 7.07 | G |
| 12N24-4 | 12 | 24 | 218 | 184 | 124 | 175 | 7 1/4 | 4 7/8 | 6 8/9 | 7.52 | G |
| CHD4-12 | 12 | 28 | 280 | 205 | 130 | 165 | 8 | 5 1/8 | 6 1/2 | 8.22 | H |
Parameter information subject to the contract, here for your reference only.
1.High Capacity, Long life.

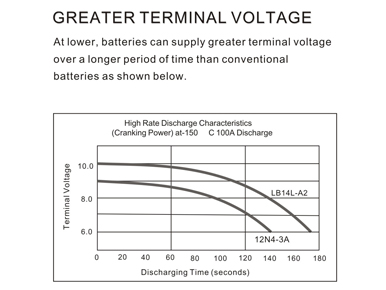

2.High CCA and good starting performance.
3.Good charging acceptance and vibration resistant performance.
4.High-quality composite of Fiber Glass and PE separators Application.
5.Application of TTP technology.

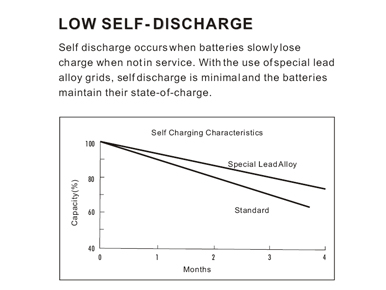

6.Advanced sulfate-resistant technology.
7.Adopt advanced low antimony alloy and low maintenance design.
8.Seal design with reliable plugs.
9.Dry charged design, long storage time, can be used at any time you want.
10.full ranges models, good appearance and high standard design.
