It is used for electric vehicles such as golf cart, aerial work platform car, sightseeing car, patrol car, hunting car, box pickup truck, sweeper car, cleaning car, cleaning car, barge and so on, providing lasting and stable DC power supply. It is widely used in tourist scenic spots, hospitals, food markets, industrial and mining enterprises, warehouses, docks and stations.
Contact US| Type | Voltage | Rated Capacity (AH) | Reserve Capacity(Min) | Maximum Overall Dimensions | Weight | Terminal Type | ||||||||||
| L | W | H | TH | |||||||||||||
| 5HR | 20HR | @25Amps | @75Amps | mm | in | mm | in | mm | in | mm | in | kg | lb | |||

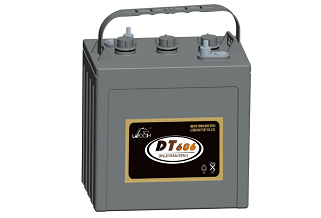

| DT606 | 6 | 175 | 210 | 380 | 105 | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 26.5 | 58.4 | DT-M8（A） |
| DT106 | 6 | 185 | 225 | 445 | 115 | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 28.6 | 63.1 | DT-M8（A） |

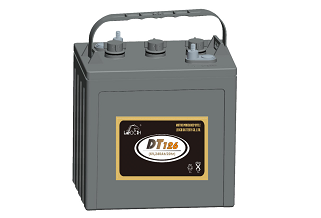

| DT126 | 6 | 195 | 240 | 485 | 130 | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 29.7 | 65.5 | DT-M8（A） |
| DT146 | 6 | 215 | 260 | 530 | 145 | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 30.4 | 67.0 | DT-M8（A） |
| DTJ305H | 6 | 295 | 360 | 781 | 215 | 296 | 11.65 | 176 | 6.93 | 343 | 13.50 | 366 | 14.41 | 45.0 | 99.2 | DT-5/16 |
| DT-L16H | 6 | 357 | 435 | 935 | 245 | 296 | 11.65 | 176 | 6.93 | 402 | 15.83 | 425 | 16.73 | 55.5 | 122.4 | DT-5/16 |
| DT-J305 | 6 | 271 | 330 | 711 | 195 | 296 | 11.65 | 176 | 6.93 | 343 | 13.50 | 366 | 14.41 | 42.0 | 92.6 | DT-5/16 |
| DT-L16 | 6 | 344 | 420 | 850 | 220 | 296 | 11.65 | 176 | 6.93 | 402 | 15.83 | 425 | 16.73 | 52.0 | 114.7 | DT-5/16 |

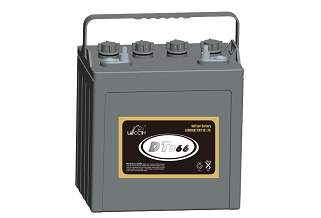

| DT866 | 8 | 125 | 150 | 225 | 90@56Amps | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 26.5 | 58.4 | DT-M8（A） |
| DT876 | 8 | 145 | 170 | 295 | 117@56Amps | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 29.2 | 64.4 | DT-M8（A） |
| DT896 | 8 | 155 | 190 | 340 | 132@56Amps | 260 | 10.24 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 31.5 | 69.4 | DT-M8（A） |

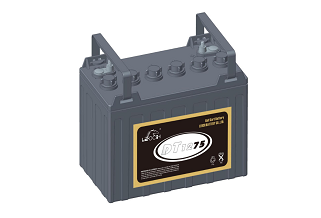

| DT1275 | 12 | 120 | 150 | 280 | 102@56Amps | 328 | 12.91 | 180 | 7.09 | 248 | 9.76 | 279.5 | 11.00 | 36.7 | 80.9 | DT-M8（A） |
Parameter information subject to the contract, here for your reference only.
1. Long cycle service life, strong recovery ability of deep discharge;
2. Good heat dissipation conditions, low risk of thermal runaway, easy maintenance;
3. High energy, low internal resistance, low self-discharge, no noise, easy to operate;
4. Reliable sealing structure ensures no leakage during use;
5. Special plate design and baffle structure increase battery performance
6. The special alloy improves the corrosion resistance of the plate, increases the service life of the battery and good deep discharge performance
1. Electric cars
2. Sightseeing bus
3. Golf cart
4. Forklift truck
5. Electric bus
6. Minivan
7. A mobility scooter for the elderly
8. Trailer
9. Aerial platform
10. Electric tools
11. Driverless transport vehicles
12. Other power sources
