PLX Series

Pure Lead used to optimize the high rate and float life. Punched continuous grid strip – better metal crystal structure Continuous, double pasting process – high consistency and reliability High Temperature Curing for Standby application to improve cycling ability COS welding, TTP and ABS heat sealing - Low internal resistance and Low self-discharging rate rapid charging acceptance and cyclic endurance for a superior performance in extreme environmental conditions. Jar formation is involved which is more under Environment friendly consideration

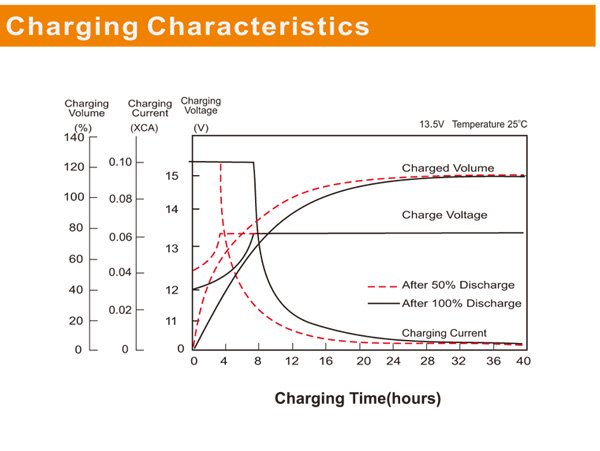

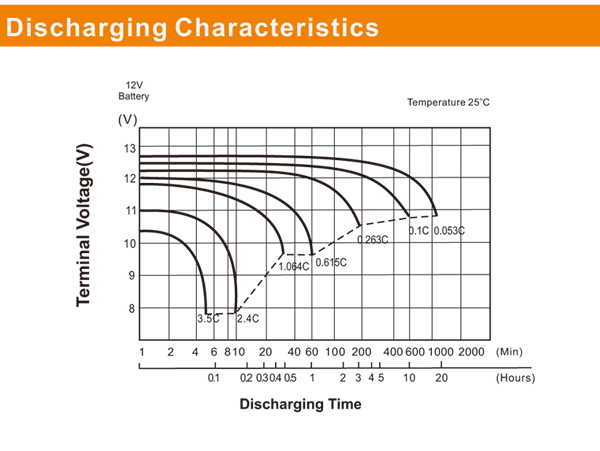

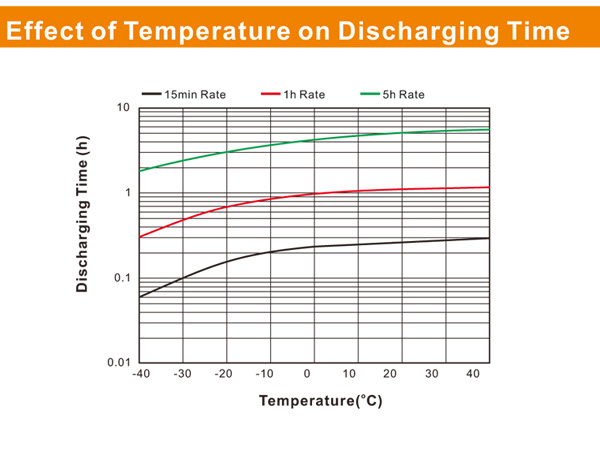

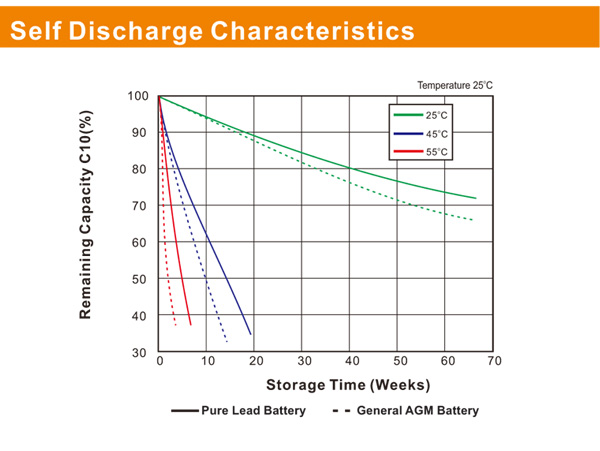

Specification Features Application Curves

Model	Rated Voltage	W15	10Hr	Length	Width	Height	TH	Weight	Terminal
Model	V	1.67V/ cell	1.80V/ cell	mm	mm	mm	mm	kg	Terminal
PLX12-260FT(A)	12	260	62	298.7	97	267	267	19.9	M6
PLX12-400FT(A)	12	400	100	405.4	108	287	287	31.5	M6
PLX12-450FT(A)	12	450	110	559	125	227	227	37.7	M6
PLX12-620FT(A)	12	620	150	559	125	277	277	48.5	M6

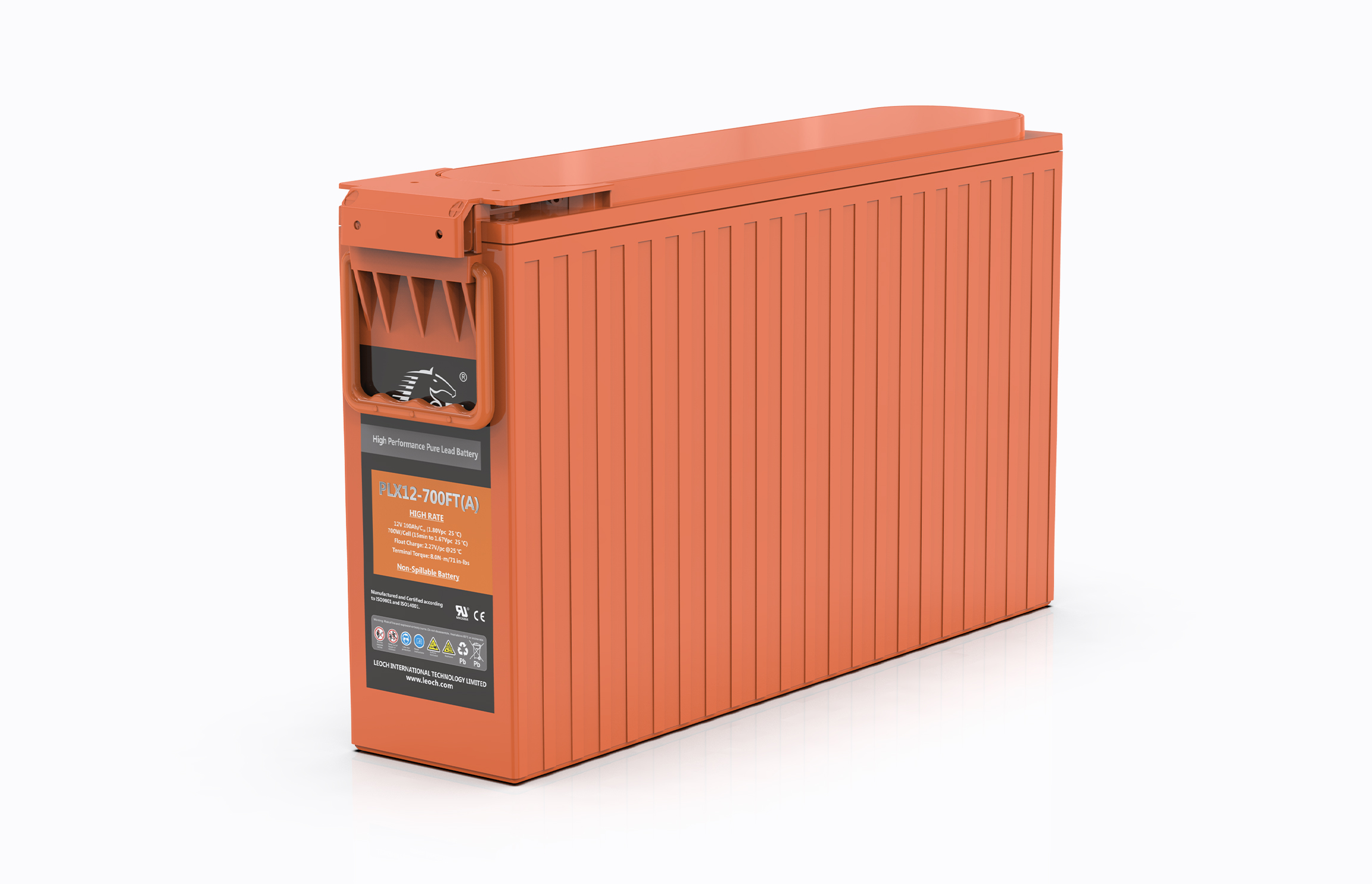

PLX12-700FT(A)	12	700	190	559	125	320	320	58.0	M6
PLX12-730FT	12	730	200	571	125	320	320	61.0	M6

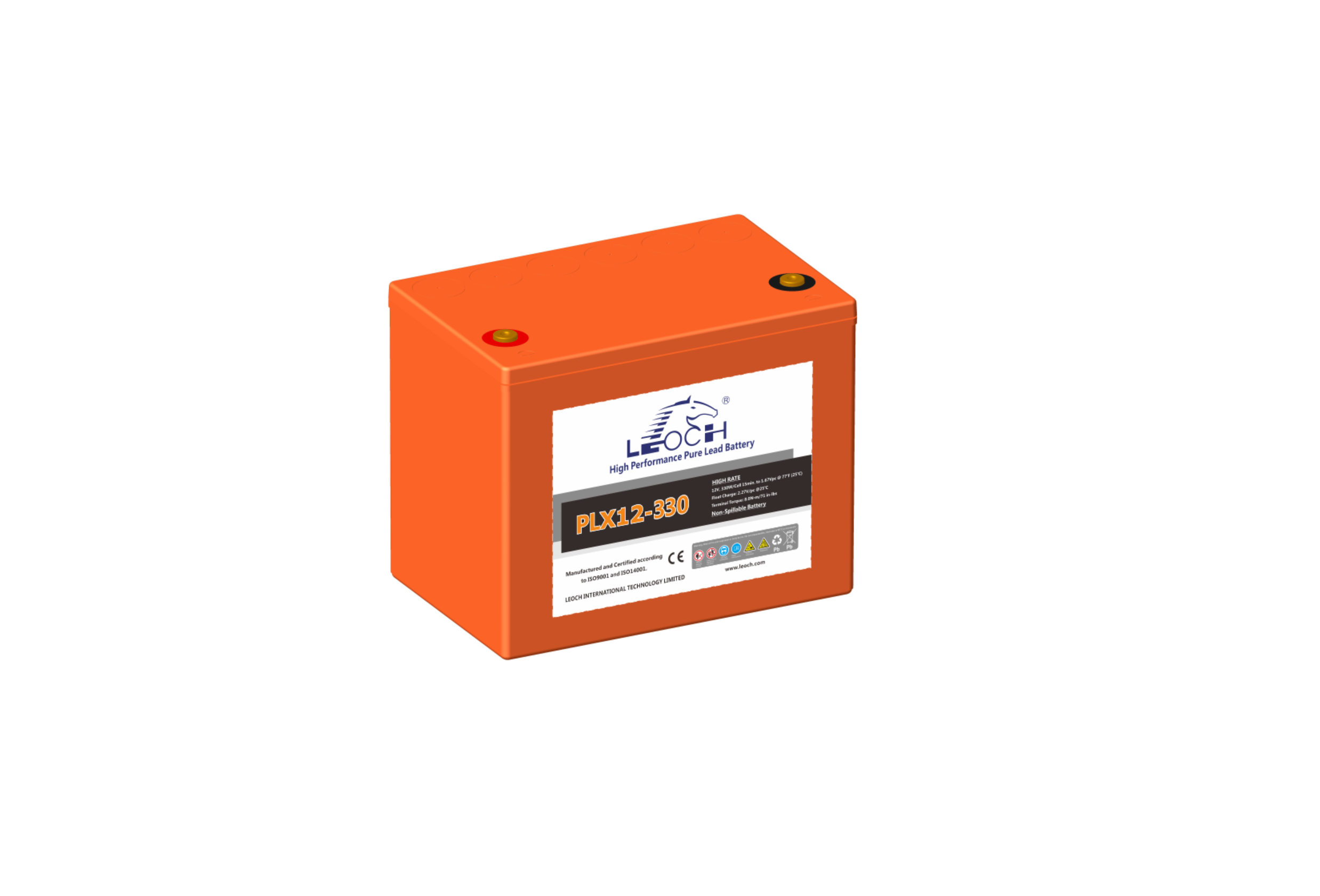

PLX12-330	12	330	80	260	168	208	211	25.6	T6(M6)
PLX12-360	12	360	90	306	168	207	210	30.0	T6(M6)
PLX12-420	12	420	100	340.9	170	213.2	215.7	33.5	T8(M6)
PLX12-500	12	500	125	340.9	170	273.2	275.7	41.7	T8(M6)

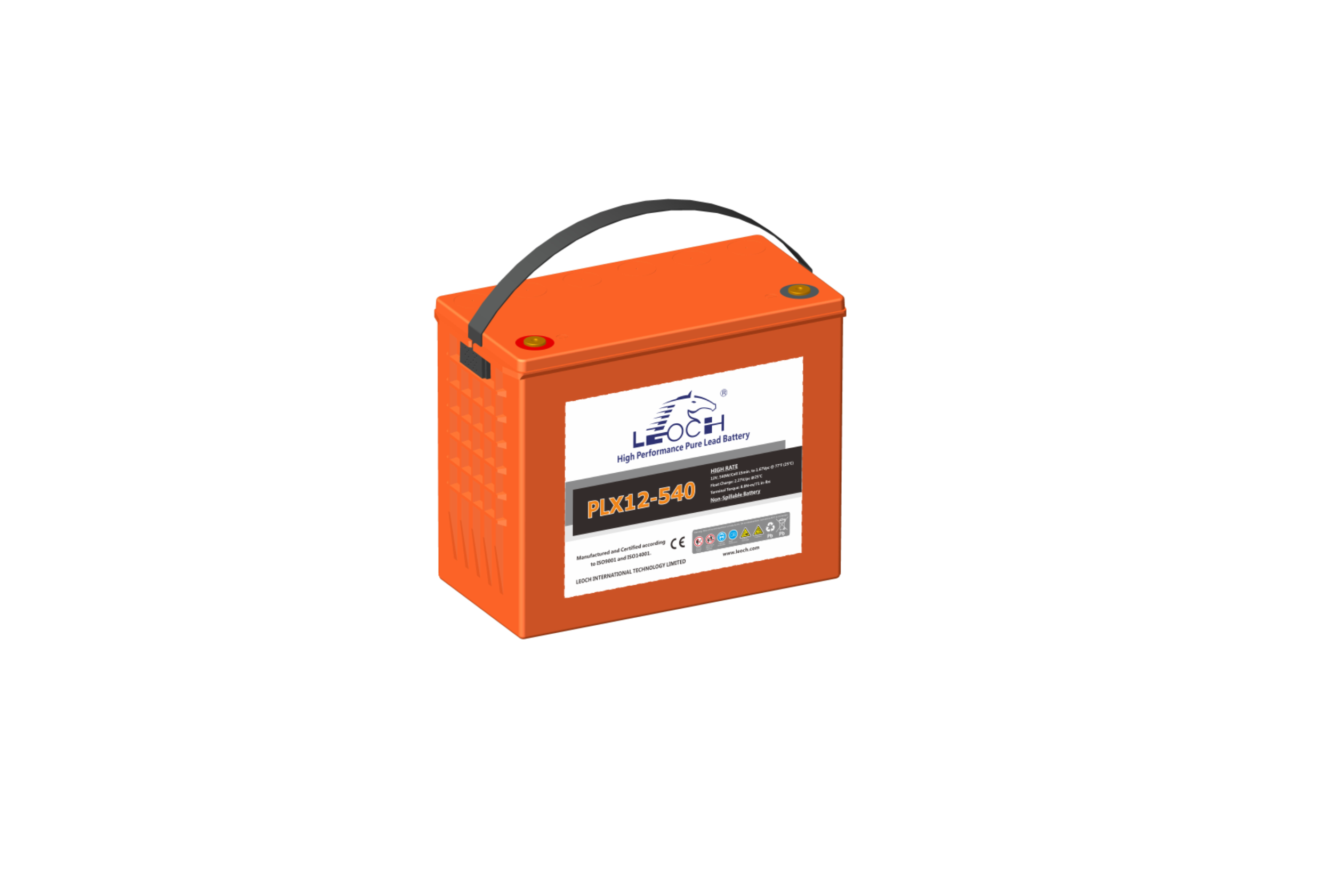

PLX12-540	12	540	135	340.9	170	273.2	275.7	43.5	T8(M6)
PLX12-620	12	620	150	340.9	170	273.2	275.7	44.8	T8(M6)

Parameter information subject to the contract, here for your reference only.

Pure Lead used to optimize the high rate and float life.
Punched continuous grid strip – better metal crystal structure
Continuous, double pasting process – high consistency and reliability
High Temperature Curing for Standby application to improve cycling ability
COS welding, TTP and ABS heat sealing - Low internal resistance and Low self-discharging rate
rapid charging acceptance and cyclic endurance for a superior performance in extreme environmental conditions.
Jar formation is involved which is more under Environment friendly consideration

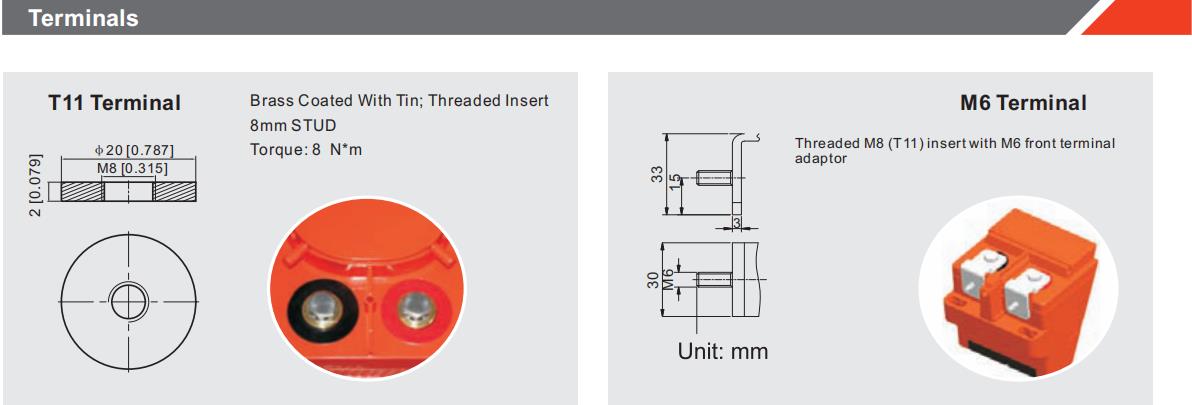

Terminal
