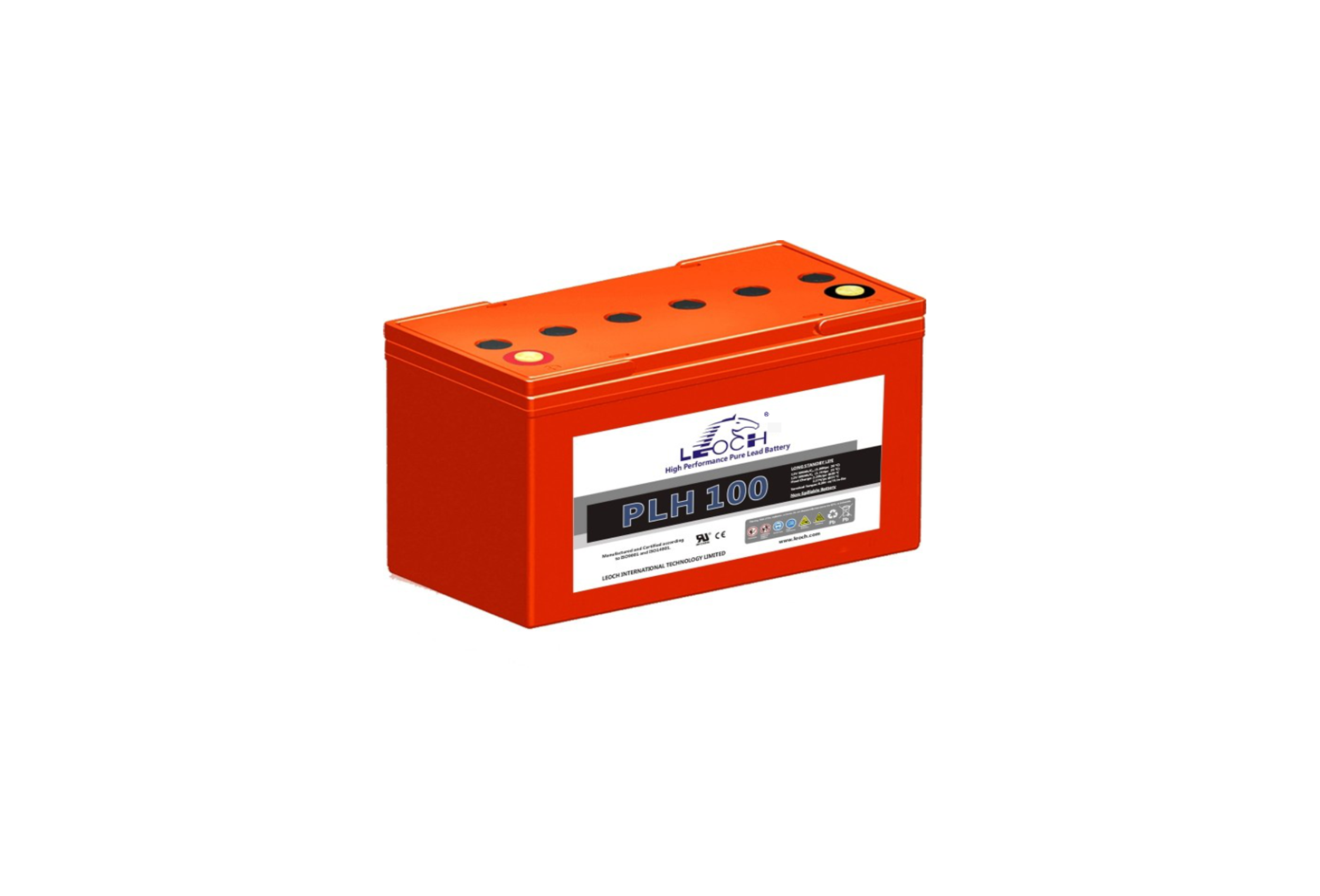

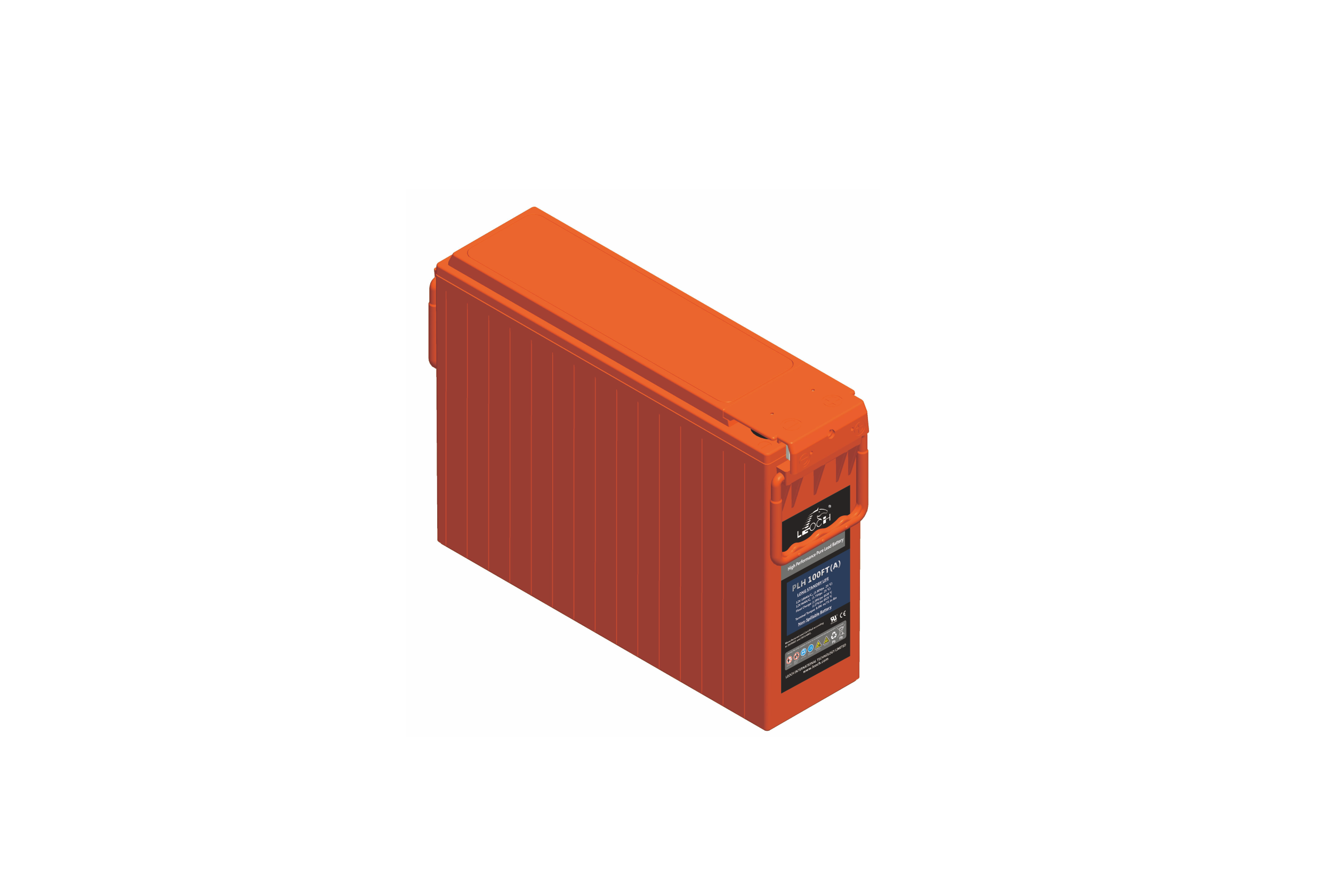

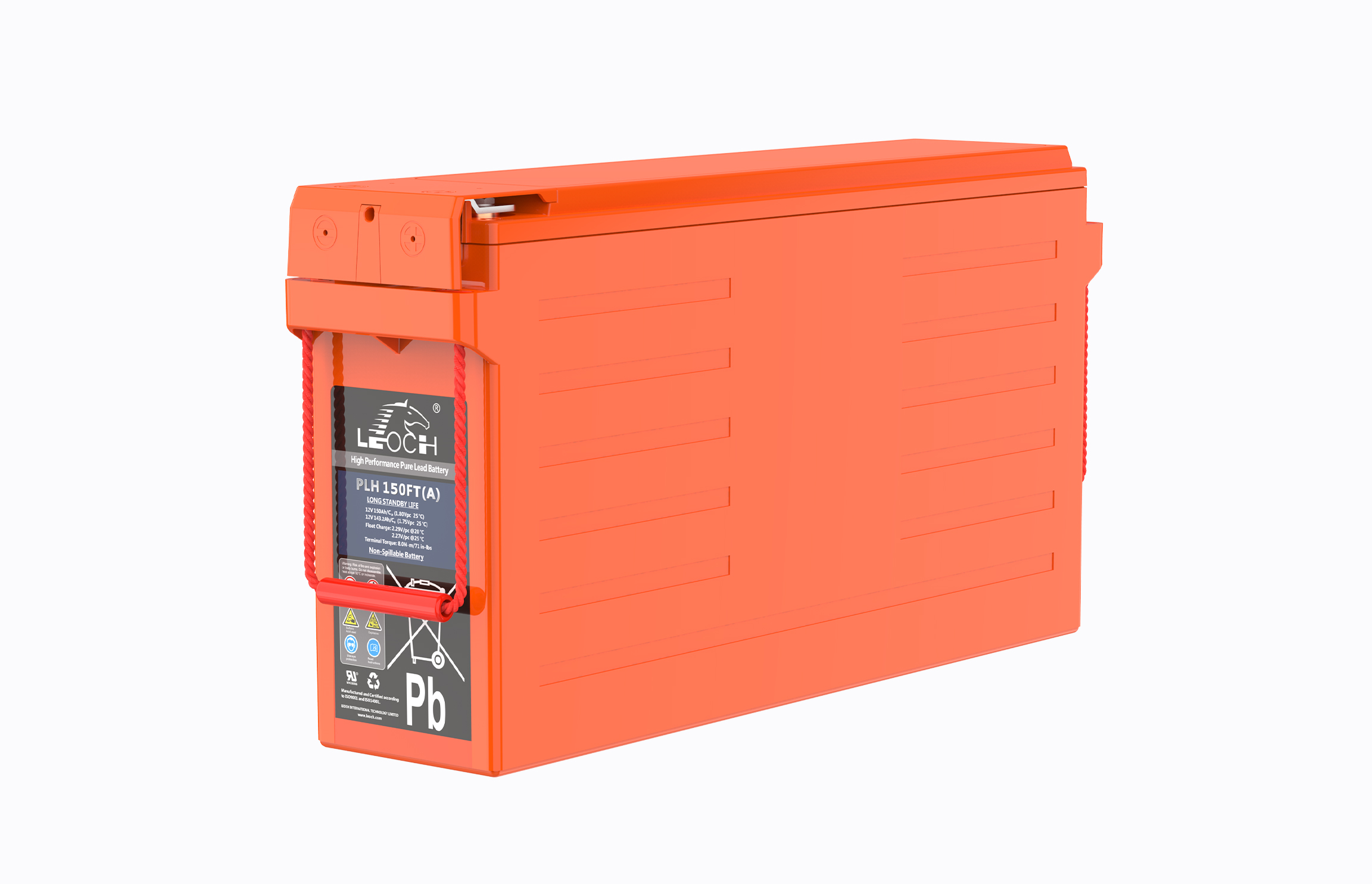

PLH Series
Pure Lead used to optimize the high rate and float life，Punched continuous grid strip – better metal crystal structure，High Temperature Curing for Standby application to improve cycling ability
Contact US
Pure Lead used to optimize the high rate and float life，Punched continuous grid strip – better metal crystal structure，High Temperature Curing for Standby application to improve cycling ability
Contact US| Model | Rated Voltage | 10Hr | Length | Width | Height | TH | Weight | |||||
| V | 1.80V /cell | mm | in. | mm | in. | mm | in. | mm | in. | kg | ibs | |
| PLH40FT(A) | 12 | 38 | 298.7 | 11.76 | 97 | 3.82 | 184 | 7.24 | 184 | 7.24 | 12.5 | 27.6 |
| PLH62FT(A) | 12 | 62 | 298.7 | 11.76 | 97 | 3.82 | 267 | 10.51 | 267 | 10.51 | 19.5 | 43.0 |
| PLH90FT(A) | 12 | 90 | 405.4 | 15.96 | 108 | 4.25 | 287 | 11.30 | 287 | 11.30 | 28.7 | 63.3 |
| PLH100FT(A) | 12 | 100 | 405.4 | 15.96 | 108 | 4.25 | 287 | 11.30 | 287 | 11.30 | 30.8 | 67.9 |
| PLH110FT(A) | 12 | 110 | 559 | 22.01 | 125 | 4.92 | 227 | 8.94 | 227 | 8.94 | 36.5 | 80.5 |
| PLH150FT(A) | 12 | 150 | 559 | 22.01 | 125 | 4.92 | 277 | 10.91 | 277 | 10.91 | 48.0 | 105.8 |
| PLH170FT(A) | 12 | 170 | 559 | 22.01 | 125 | 4.92 | 320 | 12.60 | 320 | 12.60 | 54.2 | 119.5 |
| PLH190FT(A) | 12 | 190 | 559 | 22.01 | 125 | 4.92 | 320 | 12.60 | 320 | 12.60 | 57.6 | 127.0 |
| PLH210FT(A) | 12 | 210 | 559 | 22.01 | 125 | 4.92 | 328 | 12.91 | 328 | 12.91 | 60.5 | 133.4 |
Parameter information subject to the contract, here for your reference only.

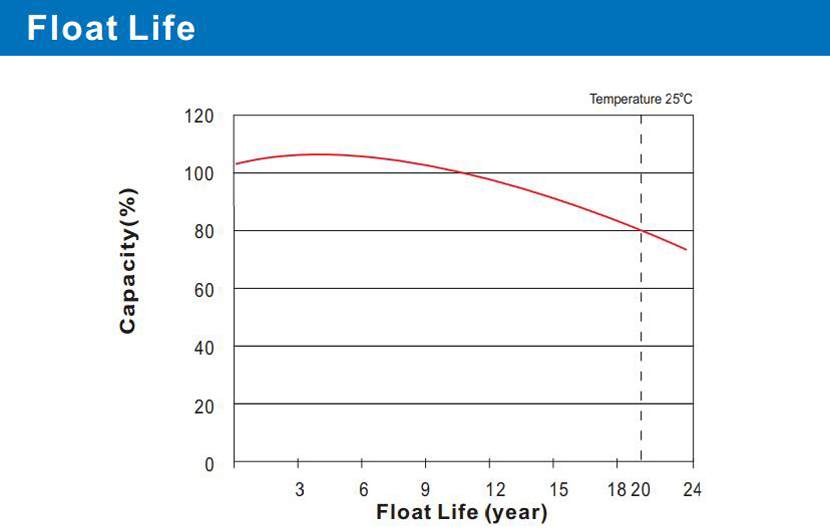

1.Long float life for telecommunication applications.
2.A design life up to 20 years with Pure Lead-Thin Plate and punching technologies.
3.Unique vent valve design minimizes water loss and prevents air and spark going inside.
4.Maintenance free with oxygen recombination technology.
