-Special grid and plate manufacture technology, automatic manufacture line raise the life and uniformity of battery -3D structure: Optimized design of active material adhesion, fine mesh grid provides more surface area for high power output -Special paste formula, advanced welding technology to ensure excellent high power discharge capacity(W/15Mr, up 20%)
Contact US| 12V | |||||||||
| Model | Rated Voltage | W15min | 10Hr | Length | Width | Height | TH | Gross | Terminal Type |
| Weight | |||||||||
| V | 1.67V/cell | 1.80V/cell | mm | mm | mm | mm | kg | ||
| LHR1224W | 12 | 24 | 5.3 | 90 | 70 | 101 | 107 | 1.88 | T1/T2 |
| LHR1226W | 12 | 26 | 6.5 | 151 | 65 | 93.5 | 99.5 | 2.08 | T1/T2 |
| LHR1230W | 12 | 30 | 7 | 151 | 65 | 93.5 | 99.5 | 2.38 | T1/T2 |
| LHR1235W | 12 | 35 | 7.8 | 151 | 65 | 93.5 | 99.5 | 2.50 | T1/T2 |

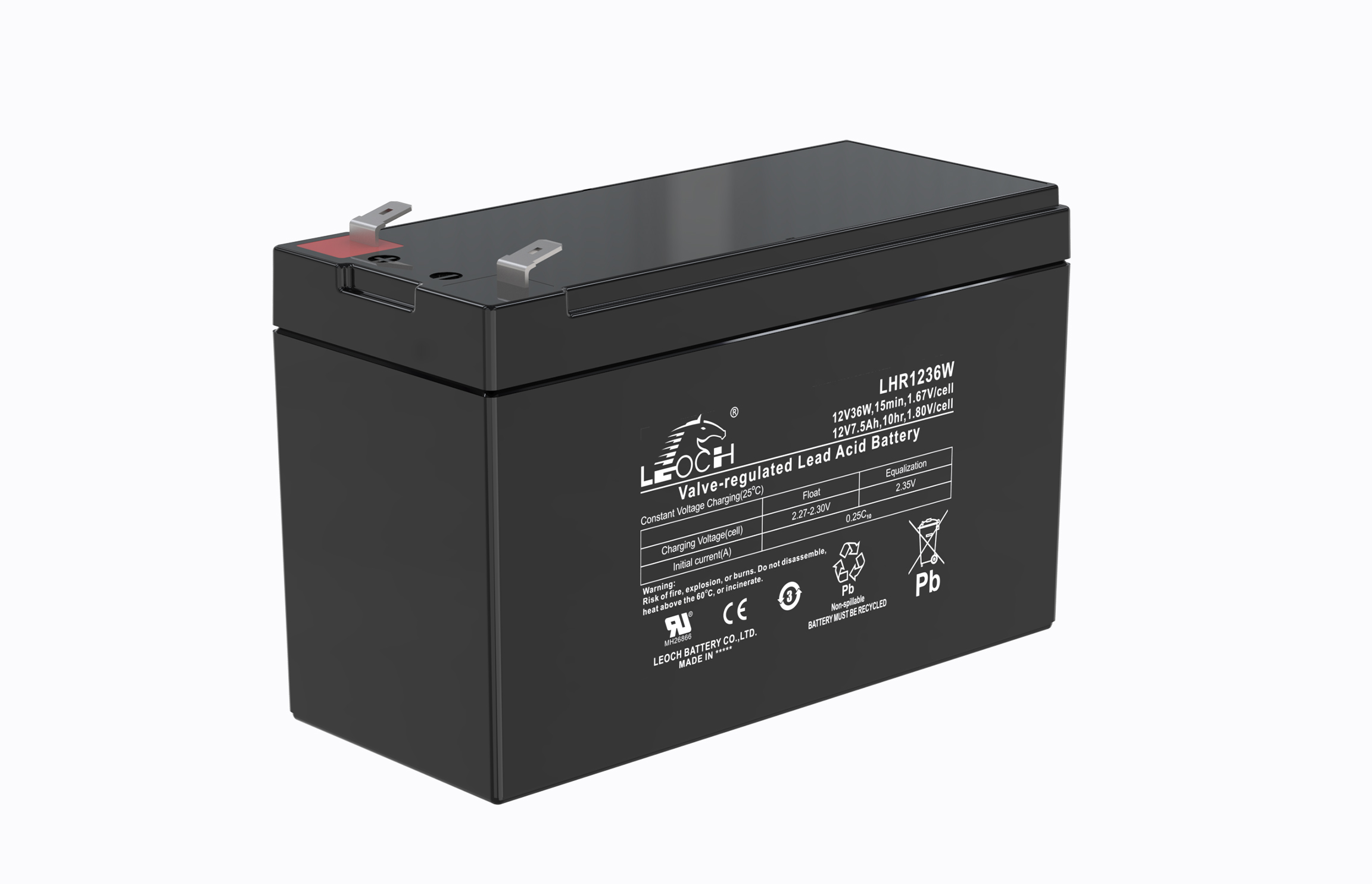

| LHR1236W | 12 | 36 | 7.5 | 151 | 65 | 93.5 | 99.5 | 2.70 | T1/T2 |
| LHR1255W | 12 | 55 | 13 | 151 | 98 | 95 | 101 | 3.78 | T1/T2 |
| LHR1285W | 12 | 85 | 18.6 | 181.5 | 76.5 | 167.5 | 167.5 | 6.00 | T12 |
| LHR12120W | 12 | 120 | 38 | 197 | 165 | 170 | 170 | 11.6 | T6(M6) |
| LHR12160W | 12 | 160 | 45 | 197 | 165 | 170 | 170 | 14.2 | T6(M6) |
| LHR12185W | 12 | 185 | 55 | 229 | 138 | 205 | 211 | 16.2 | T6(M6) |
| LHR12215W | 12 | 215 | 65 | 348 | 167 | 178 | 178 | 19.2 | T6(M6) |
| LHR12255W | 12 | 255 | 70 | 348 | 167 | 178 | 178 | 21.4 | T6(M6) |
| LHR12300W | 12 | 300 | 75 | 256 | 173 | 213 | 216 | 23.7 | T11(M8) |
| LHR12330W(A) | 12 | 330 | 80 | 293 | 173 | 213 | 216 | 26.7 | T11(M8) |
| LHR12350W | 12 | 350 | 85 | 293 | 173 | 213 | 216 | 27.4 | T11(M8) |
| LHR12360W | 12 | 360 | 100 | 330 | 173 | 213 | 216 | 30.0 | T11(M8) |

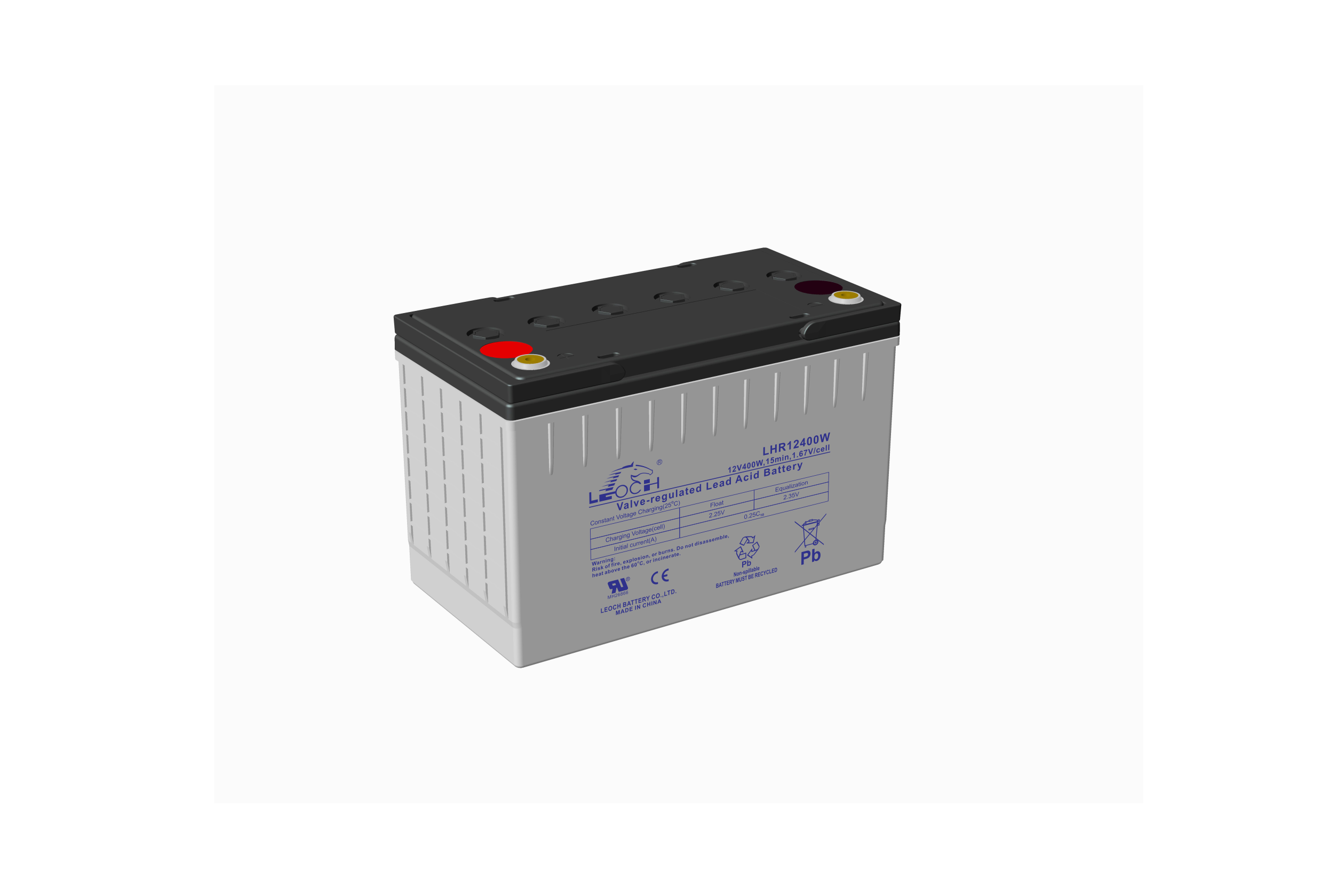

| LHR12400W | 12 | 400 | 100 | 330 | 173 | 213 | 216 | 31.2 | T11(M8) |
| LHR12430W | 12 | 430 | 100 | 330 | 173 | 213 | 216 | 32.0 | T11(M8) |

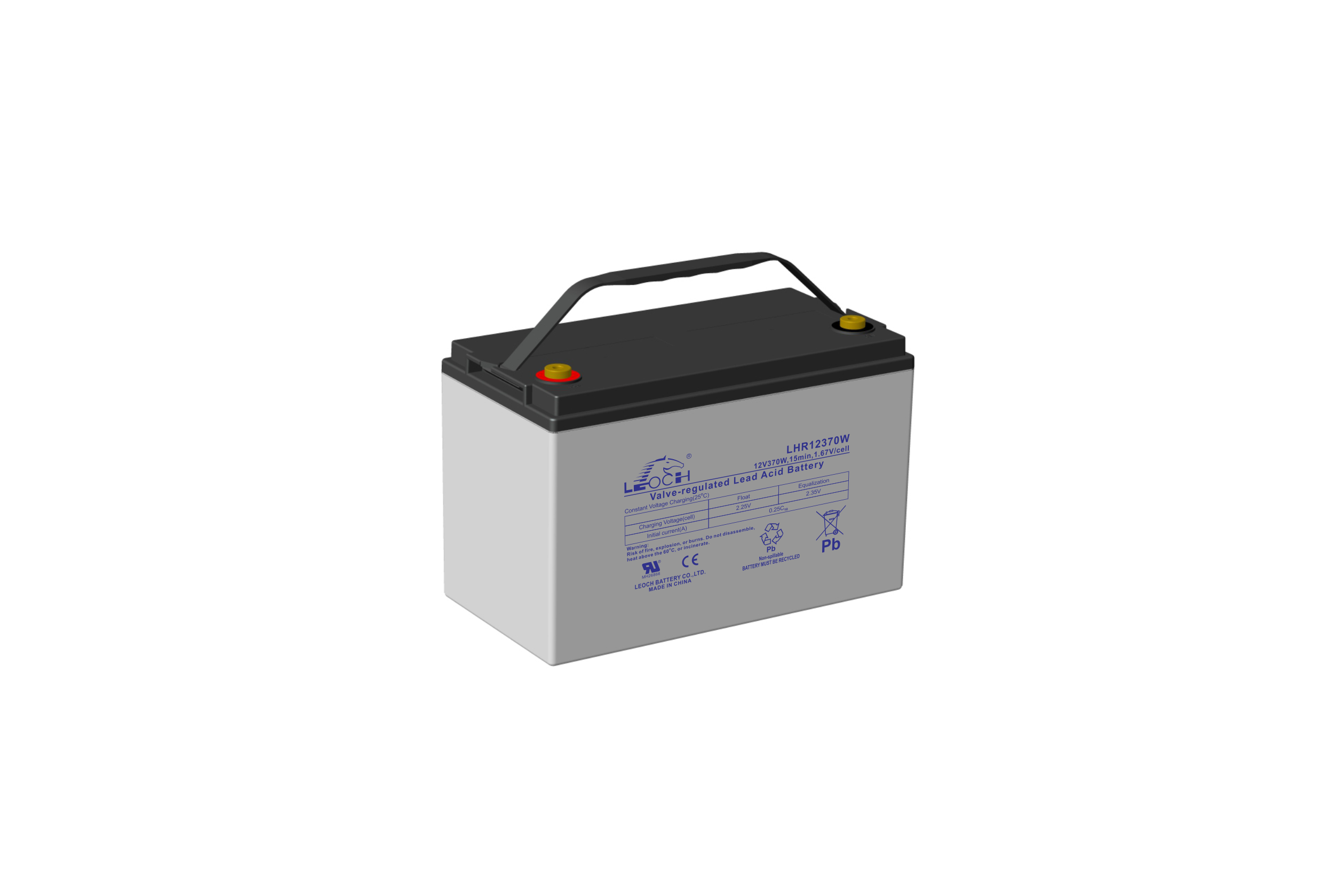

| LHR12370W | 12 | 370 | 100 | 330 | 173 | 212 | 220 | 30.7 | T11(M8) |
| LHR12420W | 12 | 420 | 110 | 408 | 177 | 225 | 225 | 35.3 | T11(M8) |
| LHR12510W | 12 | 510 | 140 | 483 | 170 | 238.5 | 238.5 | 43.6 | T11(M8) |
| LHR12705W | 12 | 705 | 190 | 532 | 207 | 214 | 220 | 59.0 | T11(M8) |
| LHR12750W | 12 | 750 | 210 | 522 | 240 | 218 | 224 | 65.3 | T11(M8) |

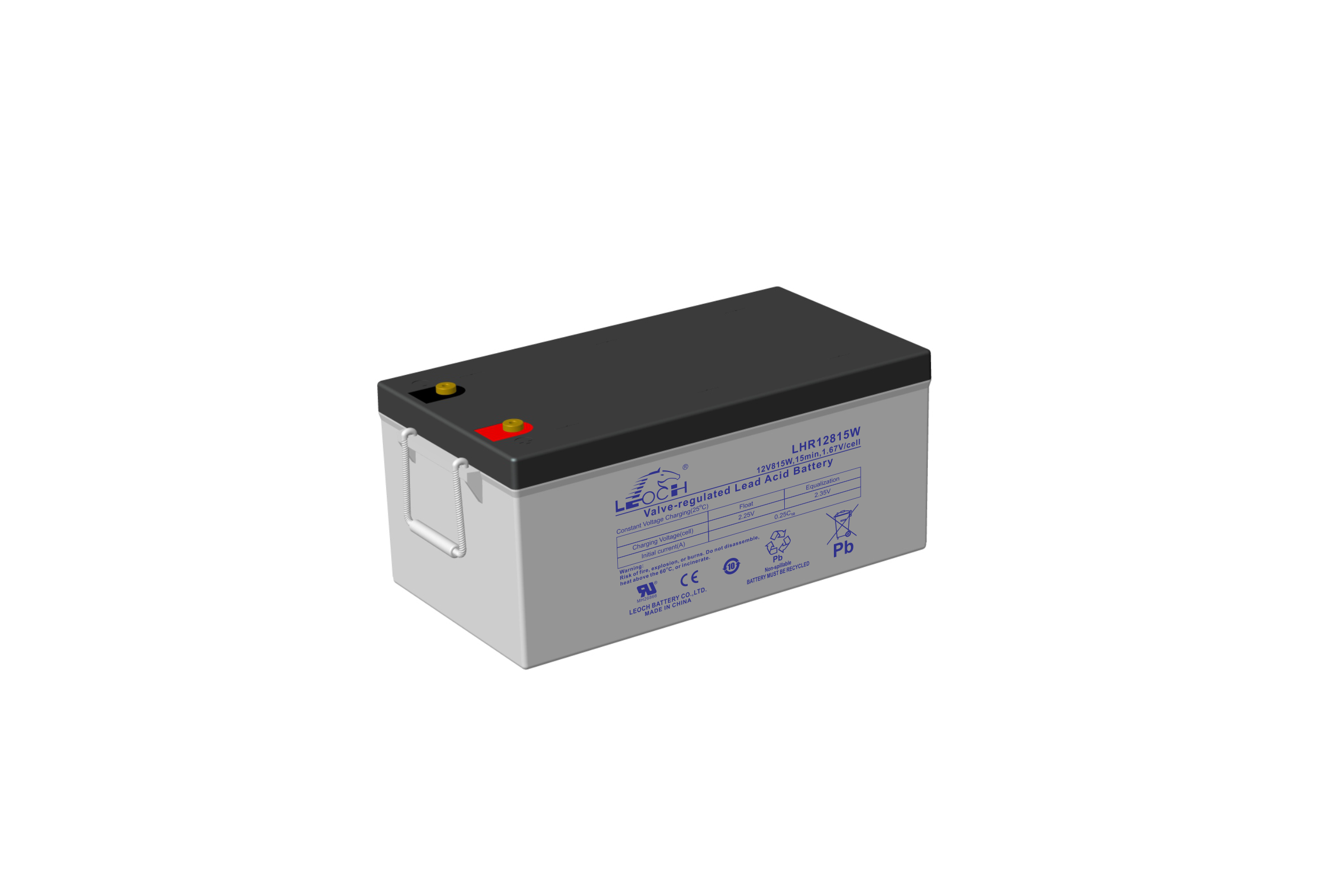

| LHR12815W | 12 | 815 | 230 | 522 | 268 | 220 | 226 | 74.1 | T11(M8) |
| LHR12460W | 12 | 460 | 120 | 408 | 177 | 225 | 225 | 37.5 | T11(M8) |
| LHR12560W | 12 | 560 | 145 | 483 | 170 | 238.5 | 239 | 46.5 | T11(M8) |
| LHR12605W | 12 | 605 | 170 | 532 | 207 | 214 | 220 | 53.7 | T11(M8) |
| LHR12650W | 12 | 650 | 180 | 532 | 207 | 214 | 220 | 56.6 | T11(M8) |
| LHR12845W | 12 | 845 | 225 | 496 | 259 | 227 | 233 | 74.5 | T11(M8) |
| LHR12890W | 12 | 890 | 235 | 496 | 259 | 227 | 233 | 77.0 | T11(M8) |

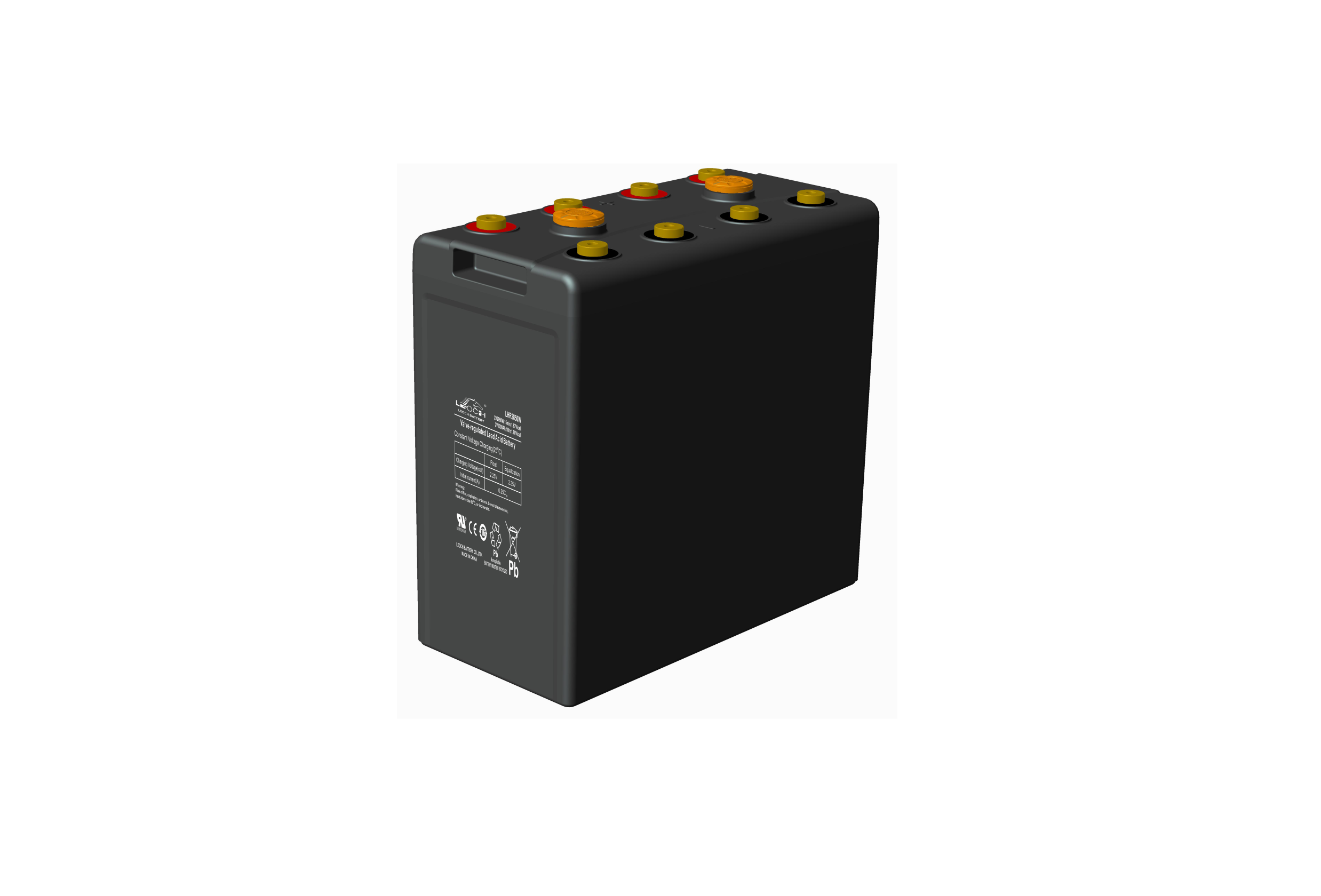

| 2V | |||||||||
| Model | Rated Voltage | W15min | 10Hr | Length | Width | Height | TH | Gross | Terminal Type |
| Weight | |||||||||
| V | 1.67V/cell | 1.80V/cell | mm | mm | mm | mm | kg | ||
| LHR500W | 2 | 500 | 180 | 90 | 181 | 350 | 365 | 11.8 | T18(M8) |
| LHR600W | 2 | 600 | 200 | 90 | 181 | 350 | 365 | 12.8 | T18(M8) |
| LHR750W | 2 | 750 | 270 | 124 | 181 | 350 | 365 | 17.4 | T18(M8) |
| LHR900W | 2 | 900 | 300 | 124 | 181 | 350 | 365 | 18.2 | T18(M8) |
| LHR950W | 2 | 1000 | 300 | 124 | 181 | 350 | 365 | 19.2 | T18(M8) |
| LHR1200W | 2 | 1200 | 400 | 158 | 181 | 350 | 365 | 24.1 | T18(M8) |
| LHR1250W | 2 | 1250 | 470 | 191 | 181 | 350 | 365 | 27.5 | T18(M8) |
| LHR1520W | 2 | 1520 | 500 | 191 | 181 | 350 | 365 | 30.3 | T18(M8) |
| LHR1800W | 2 | 1800 | 600 | 225 | 181 | 350 | 365 | 36.2 | T18(M8) |
| LHR1950W | 2 | 1950 | 600 | 225 | 181 | 350 | 365 | 37.3 | T18(M8) |
| LHR2400W | 2 | 2400 | 800 | 303 | 181 | 350 | 365 | 48.5 | T18(M8) |
| LHR2450W | 2 | 2450 | 800 | 303 | 181 | 350 | 365 | 49.2 | T18(M8) |
| LHR2850W | 2 | 2850 | 1000 | 370 | 181 | 350 | 365 | 58.7 | T18(M8) |
| FT | |||||||||
| Model | Rated Voltage | W15min | 10Hr | Length | Width | Height | TH | Gross | Terminal Type |
| Weight | |||||||||
| V | 1.67V/cell | 1.80V/cell | mm | mm | mm | mm | kg | ||
| LHR12390FT | 12 | 390 | 95 | 508 | 110 | 235 | 235 | 34.0 | T6-A(M8) |
| LHR12550FT | 12 | 550 | 140 | 551 | 110 | 288 | 288 | 47.5 | T6-A(M8) |
| LHR12600FT | 12 | 600 | 150 | 550 | 125 | 281.5 | 281.5 | 51.0 | T11(M8) |
| LHR12700FT | 12 | 700 | 180 | 560 | 125 | 318 | 318 | 60.0 | T11(M8) |
| LHR12750FT | 12 | 750 | 190 | 560 | 125 | 318 | 318 | 63.5 | T11(M8) |
| Parameter information subject to the contract, here for your reference only. | |||||||||
1.Long design life
2.ABS material: UL94-V0
3.Wide temperature range: -20°C~50°C
4.Oxygen recombination efficiency: ≥98%
5.Valve Regulated Lead Acid (VRLA) Battery, Maintenance Free
6.PbCaSn alloy for plate grids: less gassing, less self-discharging
7.Unique vent valve design: control water losing, prevent air and spark entering
