LPF Series

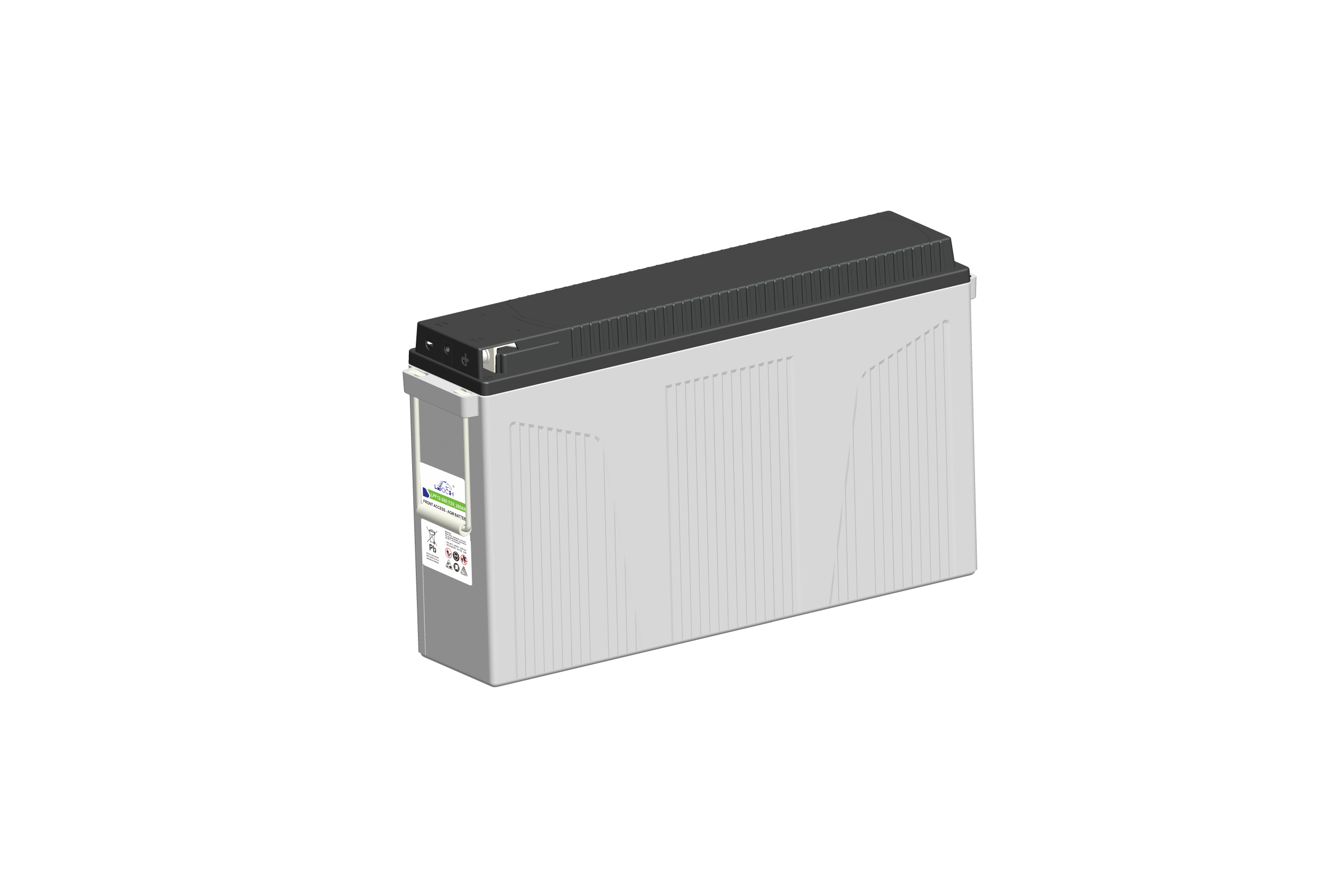

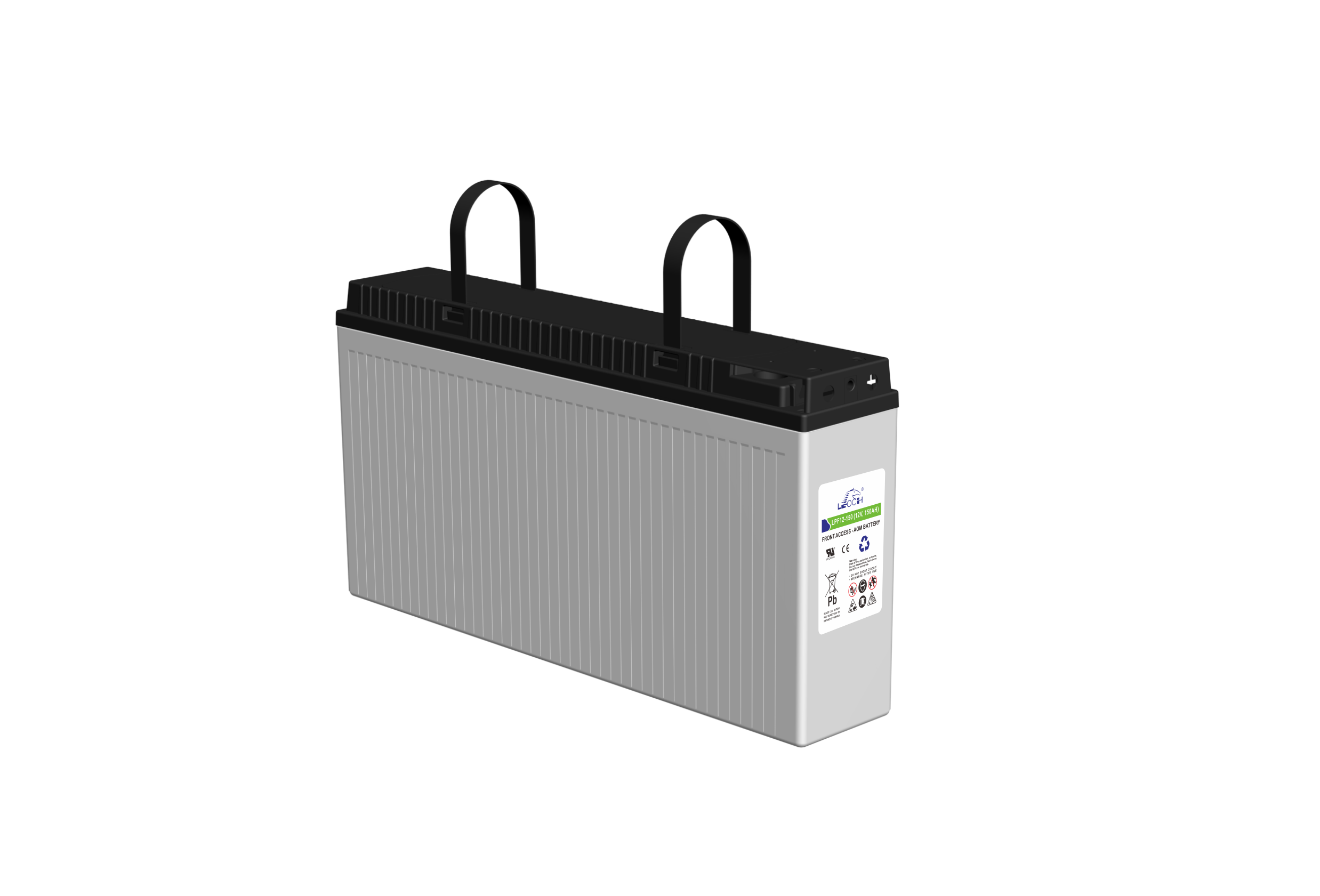

Leoch LPF series batteries are designed with front conversion terminal , faster installation and save floor space, long life float service design and high energy density, used in back-up power for communication and UPS system，
Contact US
Leoch LPF series batteries are designed with front conversion terminal , faster installation and save floor space, long life float service design and high energy density, used in back-up power for communication and UPS system，
Contact US| Model | Rated Voltage (V) | 10Hr 1.80V/cell | Length | Width | Height | TH | Weight | Terminal |
| mm | mm | mm | mm | kg | ||||
| LPF12-40 | 12 | 40 | 277 | 106 | 222 | 222 | 14.6 | T6(M6) |
| LPF12-50 | 12 | 50 | 390 | 105 | 200 | 200 | 18.5 | T6(M6) |
| LPF12-55 | 12 | 55 | 277 | 106 | 222 | 222 | 17.3 | T6(M6) |
| LPF12-70 | 12 | 70 | 564 | 114 | 187 | 187 | 25.5 | T6(M6) |
| LPF12-75 | 12 | 75 | 564 | 114 | 187 | 187 | 26.0 | T6(M6) |
| LPF12-90 | 12 | 90 | 394 | 110 | 285 | 285 | 31.0 | T6(M6) |
| LPF12-100 | 12 | 100 | 394 | 110 | 286 | 286 | 31.0 | T6(M6) |
| LPF12-100A | 12 | 100 | 508 | 110 | 238.5 | 238.5 | 32.0 | T13(M6) |
| LPF12-125 | 12 | 125 | 551 | 110 | 288 | 288 | 41.5 | T6(M6) |
| LPF12-150 | 12 | 150 | 551 | 110 | 288 | 288 | 44.8 | T6(M6) |
| LPF12-150V | 12 | 150 | 550 | 125 | 281.5 | 281.5 | 50.6 | T8(M6) |
| LPF12-170 | 12 | 170 | 550 | 125 | 281.5 | 281.5 | 51.0 | T8(M6) |
| LPF12-190 | 12 | 190 | 560 | 126 | 320 | 320 | 57.0 | T8(M6) |
| LPF12-200 | 12 | 200 | 560 | 126 | 320 | 320 | 61.0 | T11(M8) |
| LPF12-100(P) | 12 | 100 | 405.4 | 108 | 287 | 287 | 29.8 | T8(M6) |
| LPF12-190(P) | 12 | 190 | 559 | 125 | 320 | 320 | 56.8 | T8(M6) |
Parameter information subject to the contract, here for your reference only.
1. Specifically ideal for 19 inch or 23 inch power cabinets
2. Front terminals make the installation, maintenance and supervision easy
3. Shield designs protect terminals from short circuit and show good appearance
4. Unique vent valve design: reduce water losing and prevent air/spark going inside
5. Thick plates, special formula of paste and plate making process for a long service life
6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
