LPL Series

Special grid alloy and high purity raw material ensure less gassing, less self-discharging, Unique vent valve design: control water losing, prevent air and spark going inside...

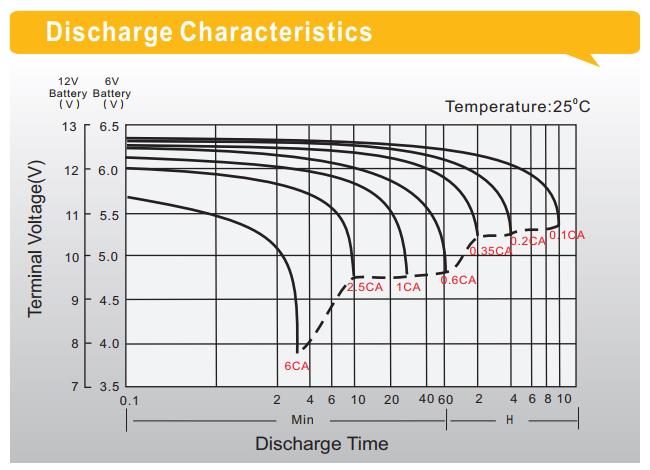

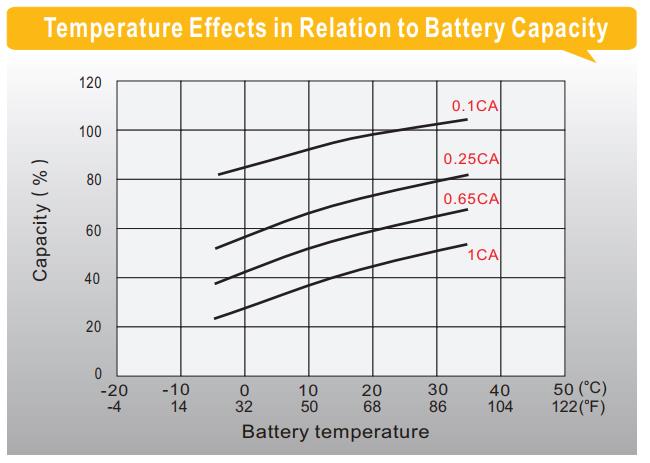

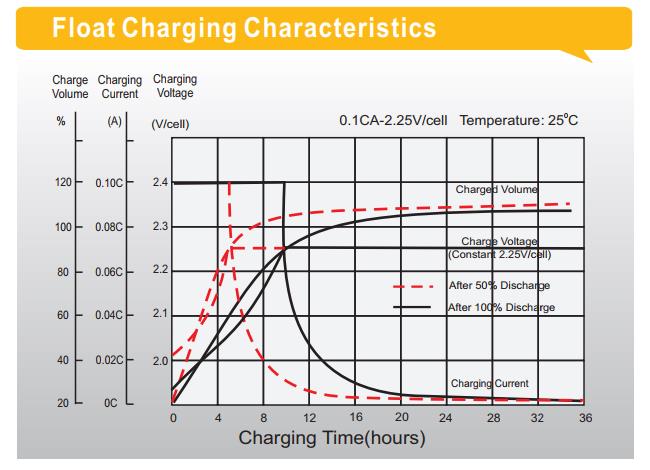

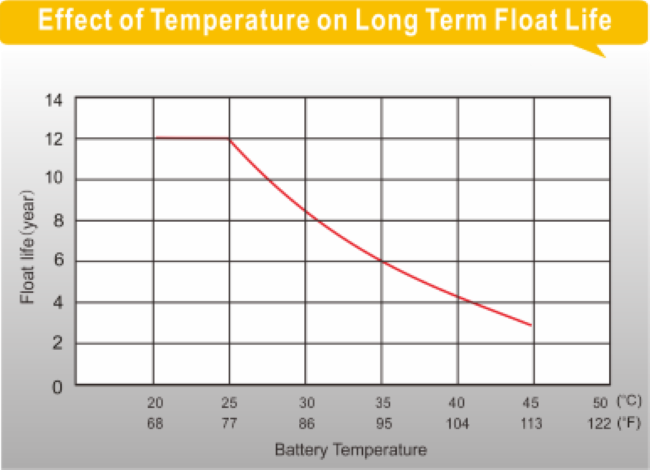

Specification Features Application Curves

Small Size

Model	Rated Voltage	10Hr	Length	Width	Height	TH	Weight	Terminal Type
	Rated Voltage	10Hr	Length	Width	Height	TH	Weight
	V	1.80V/cell	mm	mm	mm	mm	kg
	V	1.80V/cell	mm	mm	mm	mm	kg
LPL2-200M	2	200	90	181	350	365	12.4	T11(M8)
LPL2-300M	2	300	124	181	350	365	18	T11(M8)
LPL2-400M	2	400	158	181	350	365	22.7	T11(M8)
LPL2-500M	2	500	191	181	350	365	28.4	T11(M8)
LPL2-600M	2	600	225	181	350	365	33.1	T11(M8)
LPL2-800M	2	800	303	181	350	365	44.5	T11(M8)
LPL2-1000M	2	1000	370	181	350	365	55.8	T11(M8)

Normal

Model	Rated Voltage	20Hr	10Hr	Length	Width	Height	TH	Weight	Terminal Type
	Rated Voltage	20Hr	10Hr	Length	Width	Height	TH	Weight
	V	1.75V/cell	1.80V/cell	mm	mm	mm	mm	kg
	V	1.75V/cell	1.80V/cell	mm	mm	mm	mm	kg
LPL6-6.5	6	6.5		150	34	94	100	1.26	T1/T2
LPL6-9.0	6	9		151	50.5	94	100	1.7	T1/T2
LPL6-11	6	11		151	50.5	94	100	1.95	T1/T2
LPL6-18	6	18		157	83	125	125	3.21	T3-A
LPL12-7.0	12	7		151	65	93.5	99.5	2.43	T1/T2
LPL12-12	12	12		151	98	95	101	3.87	T1/T2
LPL12-18	12	18		181.5	76.5	167.5	167.5	5.7	T3
LPL12-24	12	24		166	175	125	125	7.60	T12/T12-I(M5)
LPL12-28H	12	28		164	125	176	176	9.1	T3-A
LPL12-28	12	28		166	175	125	125	8.2	T12/T12-I(M5)
LPL6-180	6		180	306	168	222	228	30.3	T8(M6)
LPL12-38	12		38	197	165	170	170	12.7	T6(M6)
LPL12-40	12		40	197	165	170	170	14.5	T6(M6)
LPL12-45	12		45	197	165	170	170	14.2	T6(M6)
LPL12-55	12		55	229	138	210	230	17.7	T9
LPL12-60	12		60	260	168	210	216	20.7	T6(M6)
LPL12-65	12		65	348	167	178	178	21	T6(M6)
LPL12-70	12		70	348	167	178	178	23.1	T6(M6)
LPL12-75	12		75	260	168	208	214	22.7	T6(M6)
LPL12-90H	12		90	330	173	212	220	29.5	T11(M8)

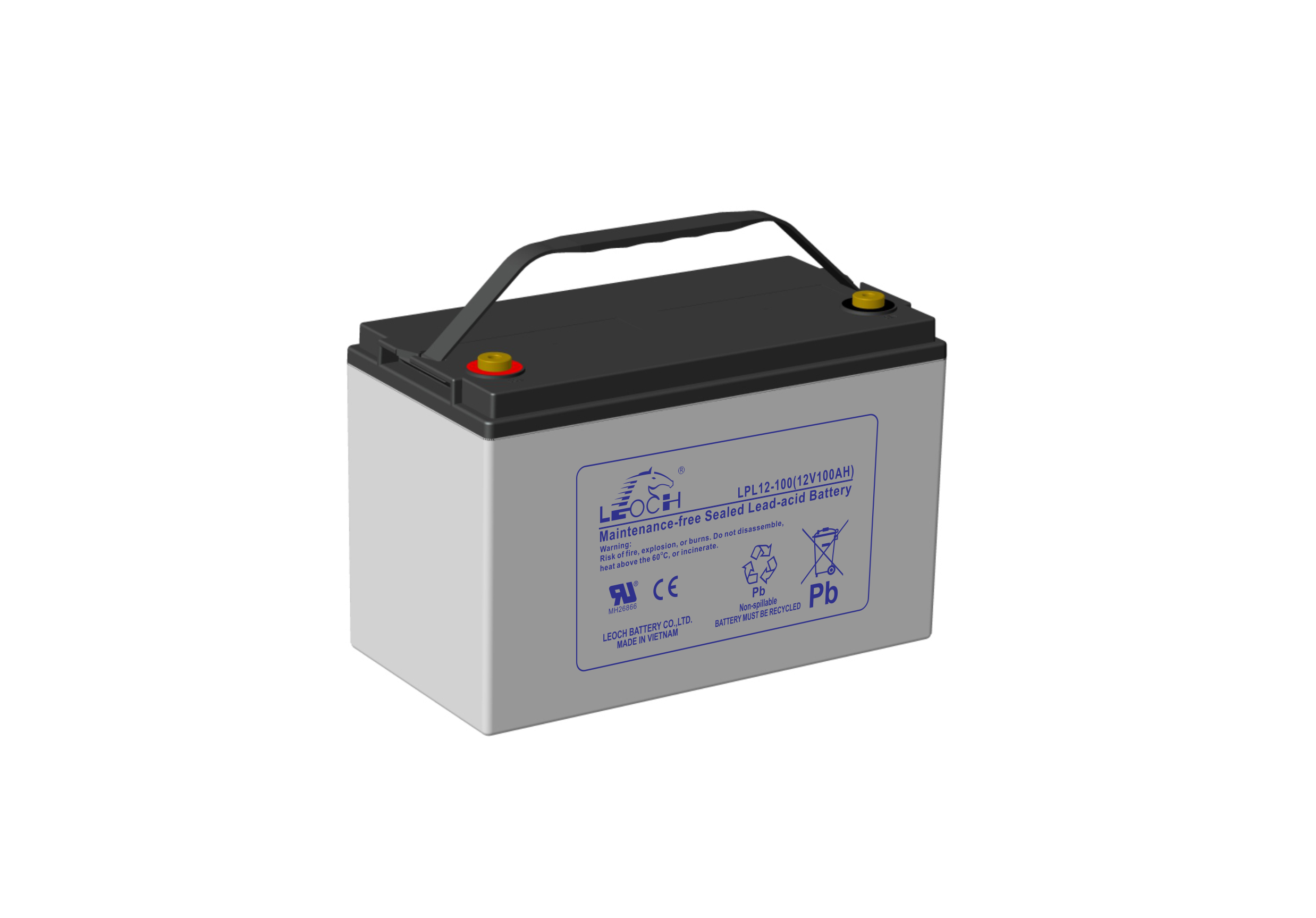

LPL12-100	12		100	330	173	212	220	30.5	T11(M8)
LPL12-120	12		120	408	177	225	225	36.3	T11(M8)
LPL12-150	12		150	483	170	238.5	238.5	46.5	T11(M8)
LPL12-200	12		200	522	240	218	224	62.3	T11(M8)
LPL12-225	12		225	522	268	220	226	70.5	T11(M8)
LPL12-250	12		250	522	268	220	226	76.5	T11(M8)
LPL2-100	2		100	170	72	205	214	5.70	T6(M6)
LPL2-200	2		200	170	110	328	348	13.5	T11(M8)
LPL2-250(PP)	2		250	170.5	110.5	325.5	345.5	15.6	T11(M8)
LPL2-300	2		300	170	150	328	348	18.6	T11(M8)
LPL2-400	2		400	210	175	330	350	25.5	T11(M8)
LPL2-500	2		500	240	175	330	350	30	T11(M8)
LPL2-500(PP)	2		500	239	174	327	347	31	T11(M8)
LPL2-600	2		600	300	175	330	350	37	T11(M8)
LPL2-800	2		800	410	175	330	350	50.4	T11(M8)
LPL2-1000	2		1000	475	175	328	350	60	T11(M8)
LPL2-1500	2		1500	403	354	339	349	97.8	T11(M8)
LPL2-2000	2		2000	490	350	339	349	121	T11(M8)
LPL2-3000	2		3000	709	350	337	347	183	T11(M8)

Parameter information subject to the contract, here for your reference only.

1. Special grid alloy and high purity raw material ensure less gassing, less self-discharging

2. Grid refining technology and the thicker plates are used to extend the battery standby life and reduce the plate grid corrosion speed

3. Lower acid density, excess of electrolyte and larger distance between plates to keep battery at low temperature and slow down plate grid corrosion speed

4. Using oxygen recombination technology: maintenance-free

5. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

6. Unique vent valve design: control water losing, prevent air and spark going inside

Terminal
