LP Series

1.Using oxygen recombination technology: maintenance-free 2.PbCaSn alloy for plate grids: less gassing, less self-discharging 3.High quality AGM separator: extend cycle life and prevent micro short circuit 4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional); 5.High purity raw material: ensure low self discharge rate 6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity

Specification Features Application Curves

Model	Rated Voltage	20hr	10hr	Length	Width	Height	TH	Weight	Terminal Type
Model	V	1.75V/cell	1.80V/cell	mm	mm	mm	mm	kg	Terminal Type
LP4-4.0	4	4		47.5	47.5	100	106	0.48	T1
LP4-4.5	4	4.5		52.5	48	94	100	0.6	T1/T2
LP4-10	4	10		101.5	50	93	99	1.14	T2
LP6-1.0	6	1		51	42	51	57	0.25	T1
LP6-1.2	6	1.2		97	24	51.5	57.5	0.29	T1
LP6-2.0	6	2		43	37	76	76	0.33	/
LP6-2.8	6	2.8		66	33	97	103	0.55	T1
LP6-3.2	6	3.5		134	34	60	66	0.6	T1
LP6-4.0	6	4		70	47	100	106	0.65	T1/T2
LP6-4.5	6	4.5		70	47	100	106	0.81	T1
LP6-4.5H	6	4.5		70	47	100	106	0.72	T1/T2
LP6-4.5S	6	4.5		67	67	96	109	0.78	Spring
LP6-5.0	6	5		169.5	34.5	70	74	0.89	T1
LP6-5.4	6	5.4		70	47	100	106	0.8	T1/T2
LP6-6.0	6	6		70	47	100	106	0.9	T1
LP6-7.0	6	7		150	34	94	100	1	T1/T2
LP6-7.2	6	7.2		150	34	94	100	1.05	T1/T2
LP6-7.5	6	7.5		150	34	94	100	1.26	T1/T2
LP6-7.8	6	8		150	34	94	100	1.28	T1/T2
LP6-8.5	6	8.5		150	34	94	100	1.2	T1/T2
LP6-8.5H	6	8.5		98	56	118	119.5	1.42	T2
LP6-10	6	10		151	50.5	94	100	1.54	T1/T2
LP6-12	6	12		151	50.5	94	100	1.6	T1/T2
LP6-13	6	13		107.5	70	140	140	2.24	NTI/PT2
LP6-14	6	14		151	50.5	94	100	1.9	T2
LP6-20	6	20		157	83	125	125	3.21	T3-A
LP6-36	6	36		161	87	163	169	5.12	T2
LP8-3.2	8	3.2		134	36.5	63	69	0.75	T1
LP12-0.8	12	0.8		96	25	62	62	0.33	/
LP12-1.2	12	1.2		97	43	52	58	0.52	T1
LP12-1.9	12	1.9		178	35	60	66	0.85	T1
LP12-2.2	12	2.2		70.5	47.5	97	103	0.78	T1
LP12-2.3	12	2.3		178	35	60	66	0.93	T1
LP12-2.8	12	2.8		132.5	33.5	98	104	1.1	T1
LP12-2.9	12	2.9		79	56	99	105	1.1	T1
LP12-3.5	12	3.5		134	67	59.5	65.5	1.19	T1
LP12-4.0	12	4		90	70	101	107	1.26	T1/T2
LP12-4.0L	12	4		195	47	70	76	1.5	T1/T2
LP12-4.5	12	4.5		90	70	101	107	1.39	T1/T2
LP12-5.0	12	5		151	53	93	99	1.73	T1
LP12-5.4	12	5.4		90	70	101	107	1.8	T1
LP12-6.0	12	6		90	70	101	107	1.91	T1/T2
LP12-6.5	12	6.5		151	51	93	99	1.82	T1/T2
LP12-7.0E	12	6		151	65	93.5	99.5	1.81	T1/T2
LP12-7.0	12	7		151	65	93.5	99.5	1.97	T1/T2
LP12-7.5	12	7.5		151	65	93.5	99.5	2.28	T1/T2
LP12-8.0	12	8		151	65	93.5	99.5	2.5	T1/T2
LP12-8.5	12	8.5		151	65	93.5	99.5	2.45	T1/T2

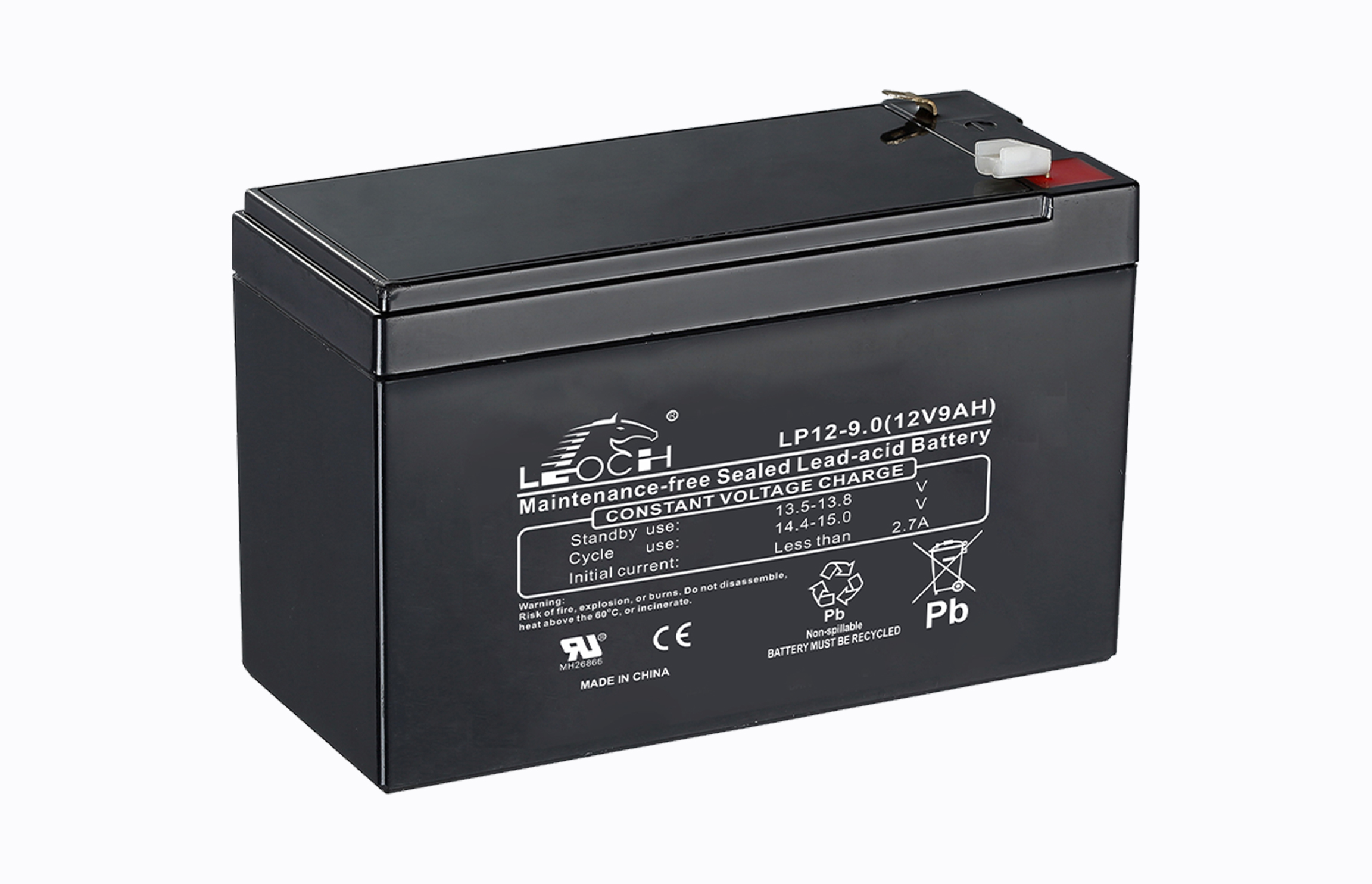

LP12-9.0	12	9		151	65	93.5	99.5	2.52	T1/T2
LP12-10	12	10		151	98	95	101	3.06	T1/T2
LP12-10H	12	10		151	65	111	117	3.07	T1/T2
LP12-12	12	12		151	98	95	101	3.24	T1/T2
LP12-14	12	14		151	98	95	101	3.78	T1/T2
LP12-15	12	15		181.5	76.5	167.5	167.5	4.7	T3
LP12-18	12	18		181.5	76.5	167.5	167.5	5.35	T3/T2
LP12-20	12	20		181.5	76.5	167.5	167.5	5.65	T12(M5)
LP12-24	12	24		166	175	125	125	7.2	T3
LP12-24H	12	24		164	125	174	174	7.6	T12-I(M5)
LP12-26	12	26		166	175	125	125	7.8	T12/T12-I(M5)
LP12-28	12	28		166	175	125	125	8.2	T3
LP12-28H	12	28		164	125	174	174	9.1	T12/T12-I(M5)
LP12-30	12	30		195	130	164	167	9.3	T6-I(M6)
LP12-30H	12	30		195	130	164	178	9.3	T5
LP12-33	12	33		195	130	164	167	9.8	T6-I
LP12-35	12	35		195	130	164	178	10.7	T5
LP6-60	6		60	185	112	205	205	9.1	T2
LP6-200	6		200	322	178	226	232	30.3	T11(M8)
LP12-38	12		38	197	165	170	170	12	T6(M6)
LP12-40	12		40	197	165	170	170	13.7	T6(M6)
LP12-45	12		45	197	165	170	170	14.2	T6(M6)
LP12-50	12		50	257	132	200	200	15.7	T6(M6)
LP12-55	12		55	229	138	205	211	16.2	T6(M6)
LP12-60	12		60	260	168	208	214	18.4	T6(M6)
LP12-65	12		65	348	167	178	178	19.2	T6(M6)
LP12-70	12		70	348	167	178	178	21.4	T6(M6)
LP12-75	12		75	260	168	208	214	22.3	T6(M6)
LP12-80	12		80	260	168	208	214	23.8	T6(M6)
LP12-90	12		90	330	173	213	220	27.8	T11(M8)
LP12-100E	12		100	330	173	213	220	28.5	T11(M8)

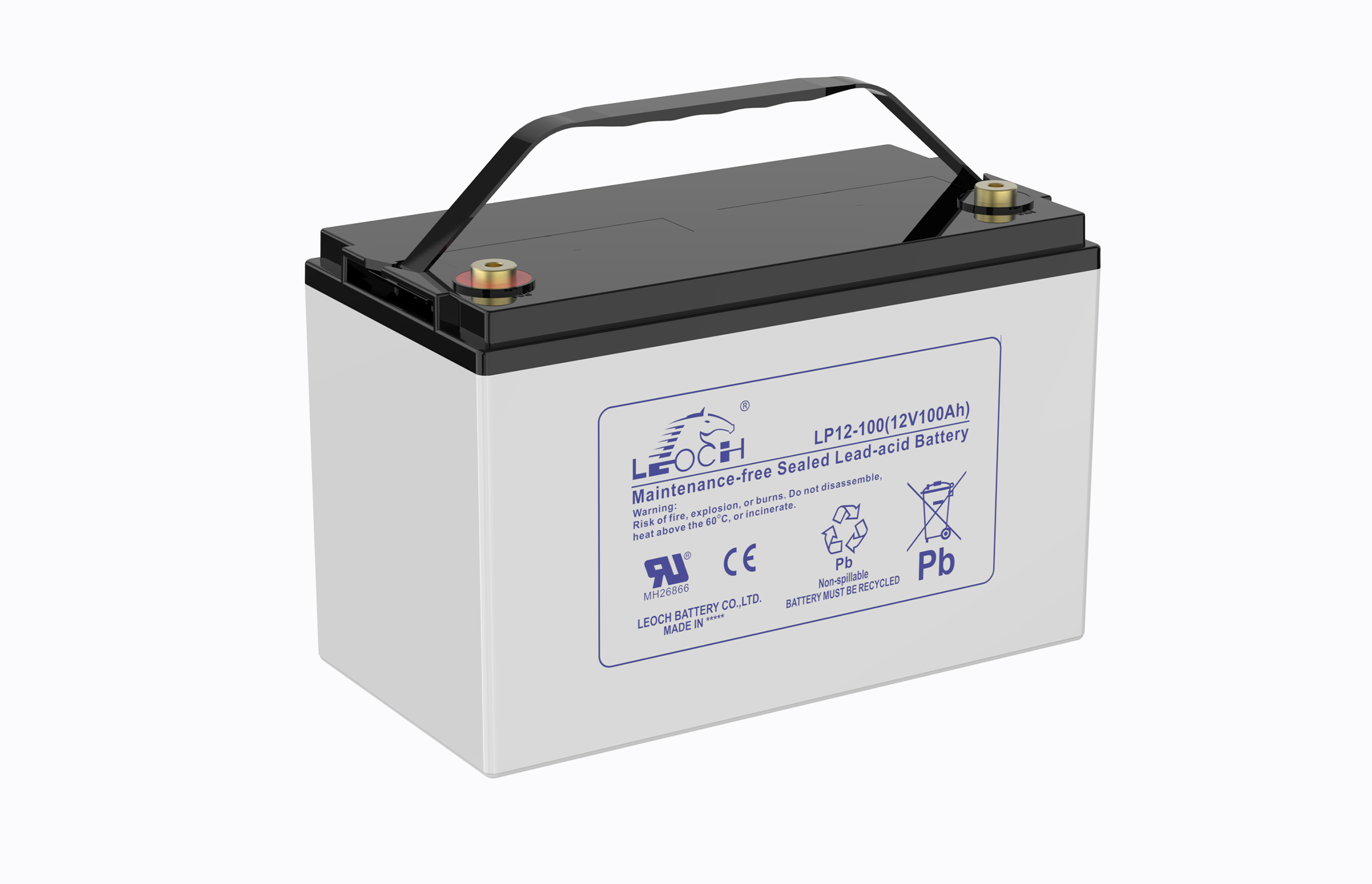

LP12-100	12		100	330	173	212	220	28	T11(M8)
LP12-120	12		120	408	177	225	225	35	T11(M8)
LP12-140	12		140	345	172	274	280	41.2	T11(M8)
LP12-150	12		150	483	170	238.5	238.5	43.2	T11(M8)
LP12-180	12		180	532	207	214	220	51	T11(M8)
LP12-200	12		200	522	240	218	224	59.8	T11(M8)
LP12-250	12		250	522	268	220	226	70.6	T11(M8)
LP2-65	2		65	170	72	205	214	4.2	T6(M6)
LP2-100	2		100	170	72	205	214	5.7	T6(M6)
LP2-120	2		120	170	98	205	214	7	T7(M6)
LP2-150	2		150	170	98	205	214	8.4	T7(M6)
LP2-200	2		200	170	110	328	348	13.5	T11(M8)
LP2-250	2		250	170	110	328	350	14.3	T11(M8)
LP2-300	2		300	170	150	328	348	18.6	T11(M8)
LP2-350	2		350	170	150	328	348	19.2	T11(M8)
LP2-400	2		400	210	175	330	350	25.5	T11(M8)
LP2-450	2		450	210	175	330	350	26	T11(M8)
LP2-500	2		500	240	175	330	350	30	T11(M8)
LP2-600	2		600	300	175	330	350	37	T11(M8)
LP2-800	2		800	410	175	330	350	50.4	T11(M8)
LP2-1000	2		1000	475	175	328	350	60	T11(M8)
LP2-1200	2		1200	475	175	328	350	63.8	T11(M8)
LP2-1500	2		1500	403	354	339	349	97.8	T11(M8)
LP2-2000	2		2000	490	350	339	349	121	T11(M8)
LP2-3000	2		3000	709	350	337	347	183	T11(M8)

Parameter information subject to the contract, here for your reference only.

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);

5.High purity raw material: ensure low self discharge rate

6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity

Terminal

1. All purpose
2. Uninterruptable Power Supply (UPS)
3. Electric Power System (EPS)
4. Emergency light
5. Emergency backup power supply
6. Auto control system
7. Tele-communication central station (wired or cellular)
8. Power system communication
9. Network communication including: data transmission, television signal transmission, etc.
10. Uninterruptable Power System (UPS- for Telecom)
