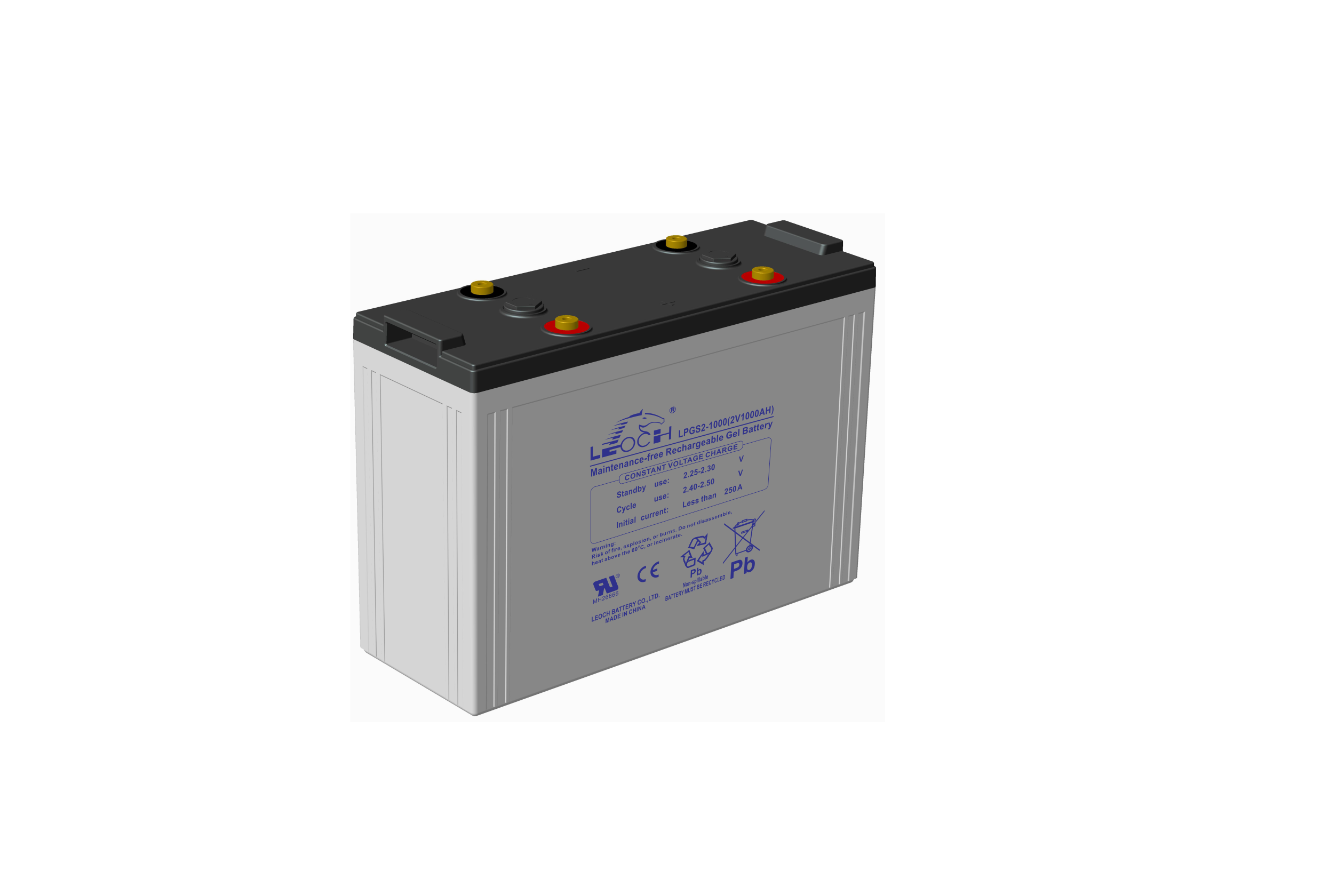

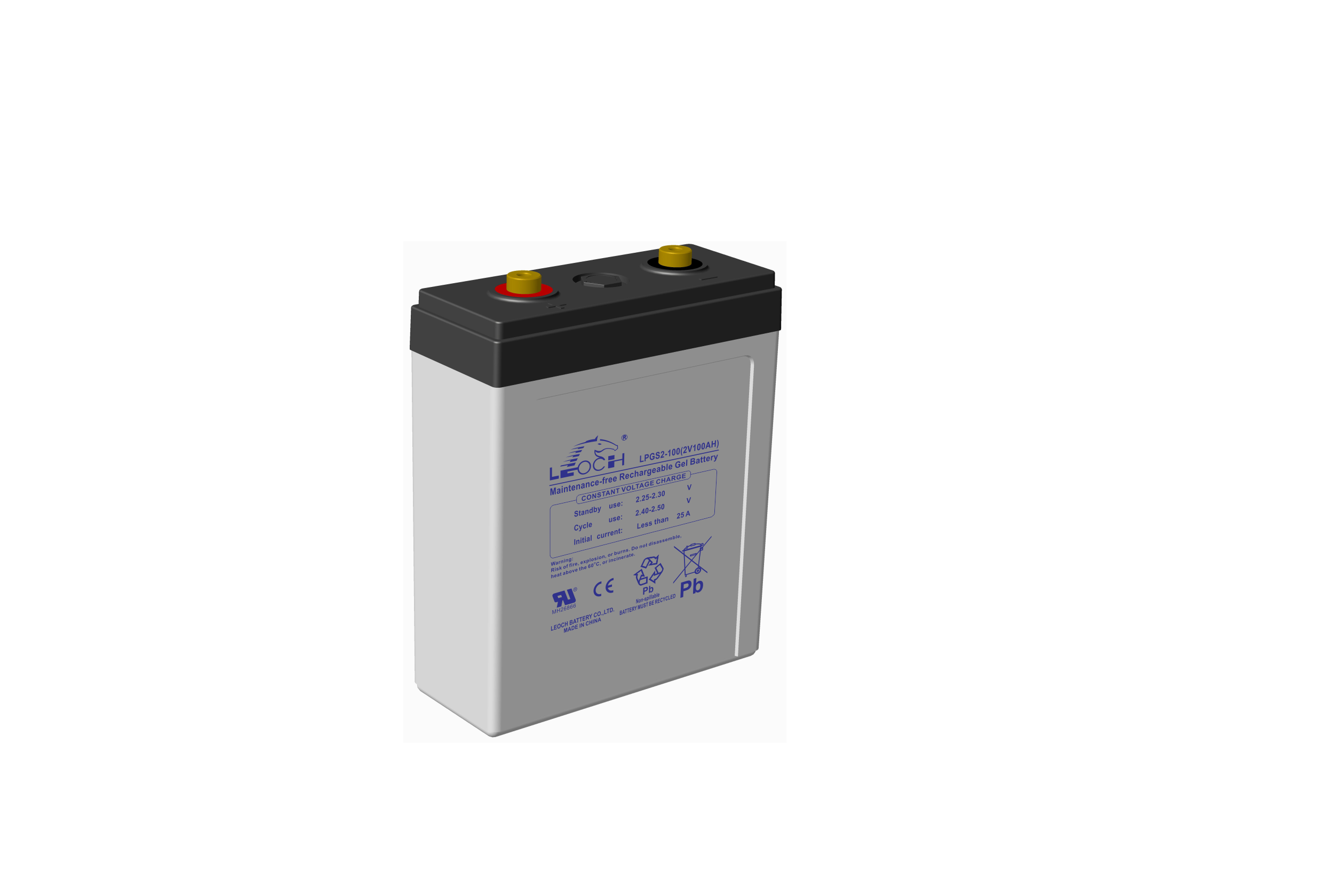

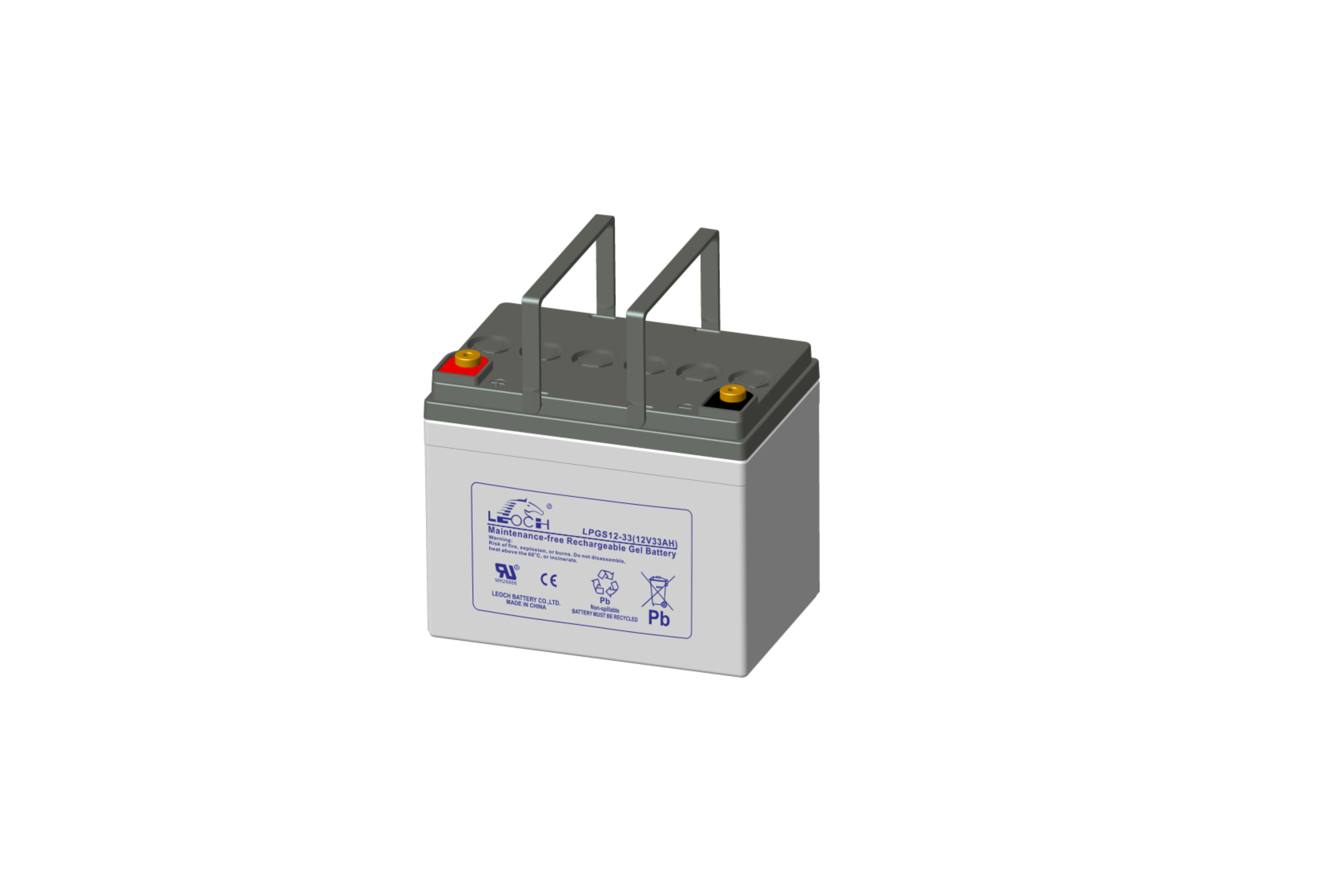

LPGS Series
TRUE Hybrid GEL Battery
Contact US
| Model | Rated Voltage | 20HR | 10HR | Length | Width | Height | TH | Weight | Terminal |
| V | 1.80V/cell | mm | mm | mm | mm | kg | |||
| LPGS12-33 | 12 | 33 | 195 | 130 | 164 | 167 | 10.5 | T6-I(M6) | |
| LPGS12-38 | 12 | 38 | 197 | 165 | 170 | 170 | 12.8 | T6(M6) | |
| LPGS12-65 | 12 | 65 | 325 | 167 | 174 | 174 | 21.05 | T6(M6) | |
| LPGS12-75 | 12 | 75 | 260 | 168 | 208 | 214 | 22.5 | T6(M6) | |
| LPGS12-80 | 12 | 80 | 260 | 168 | 208 | 214 | 24 | T6(M6) | |
| LPGS12-90 | 12 | 90 | 306 | 168 | 208 | 214 | 27 | T6(M6) | |
| LPGS12-100 | 12 | 100 | 330 | 173 | 212 | 218 | 30.8 | T11(M8) | |
| LPGS12-120 | 12 | 120 | 408 | 177 | 225 | 225 | 34.8 | T11(M8) | |
| LPGS12-140 | 12 | 140 | 483 | 170 | 238.5 | 238.5 | 41.8 | T11(M8) | |
| LPGS12-150 | 12 | 150 | 483 | 170 | 238.5 | 238.5 | 43.6 | T11(M8) | |
| LPGS12-180 | 12 | 180 | 532 | 207 | 214 | 220 | 54 | T11(M8) | |
| LPGS12-200 | 12 | 200 | 522 | 240 | 218 | 224 | 60.3 | T11(M8) | |
| LPGS12-250 | 12 | 250 | 522 | 268 | 220 | 226 | 73.1 | T11(M8) | |
| LPGS2-200 | 2 | 200 | 170 | 110 | 328 | 337 | 13.6 | T11(M8) | |
| LPGS2-300 | 2 | 300 | 170 | 150 | 328 | 337 | 18.9 | T11(M8) | |
| LPGS2-400 | 2 | 400 | 210 | 175 | 330 | 339 | 25.7 | T11(M8) | |
| LPGS2-500 | 2 | 500 | 240 | 175 | 330 | 339 | 30.2 | T11(M8) | |
| LPGS2-600 | 2 | 600 | 300 | 175 | 330 | 340 | 37.2 | T11(M8) | |
| LPGS2-800 | 2 | 800 | 410 | 175 | 330 | 340 | 50.7 | T11(M8) | |
| LPFGS12-100 | 12 | 100 | 508 | 110 | 238.5 | 238.5 | 32.2 | T13(M6) | |
| LPFGS12-100L | 12 | 100 | 545 | 110 | 232.5 | 232.5 | 34.2 | T6(M6) | |
| LPFGS12-150 | 12 | 150 | 551 | 110 | 288 | 288 | 47.0 | T6(M6) | |
| LPFGS12-180 | 12 | 180 | 170 | 550 | 125 | 281.5 | 281.5 | 51.4 | T8(M6) |
| Model | Rated Voltage | 20Hr | 10Hr | Length | Width | Height | TH | Weight | Terminal |
| V | 1.80V/cell | 1.80V/cell | mm | mm | mm | mm | kg | ||
| LPFG12-50HS | 12 | 50 | 390 | 105 | 200 | 200 | 18.5 | T6(M6) | |
| LPFG12-100HS | 12 | 100 | 394 | 110 | 286 | 286 | 31.7 | T6(M6) | |
| LPFG12-150HS | 12 | 150 | 551 | 110 | 288 | 288 | 46.4 | T6(M6) | |
| LPFG12-170HS | 12 | 170 | 550 | 125 | 281.5 | 281.5 | 51.4 | T8(M6) | |
| LPFG12-190HS | 12 | 190 | 560 | 126 | 320 | 320 | 60.5 | T11(M8) |
Parameter information subject to the contract, here for your reference only.
1. AGM separator, flat plate, top terminal series etc.
2. Adopted advantage AGM-GEL technology
3. Nano-meter fumed siica GEL
4. ABS material (UL94 V-0, optional)
5. Comply with PVRS 5A, IEC61427, Kds standards
6. Operation temperature:-20~60°C
7. 12 years design life
8. ≥500 Cycles @ 80%DOD
9. ≤2% Self discharge
10. ≥A+B CYCLES @PSoC
11. Fast recharge
1. Wind & solar & renewable energy
2. Street lamp & CATV & oil and gas
3. Poor grid reliability back-up applications
4. Hybrid telecom remote base stations
5. All extreme environment off-grid applications
6. They are compliant with both AGM and Gel applications
7. UPS
